Heavy-Duty Hydraulic Dock Leveler – High-Strength Steel for Smooth Warehousing Cargo Handling

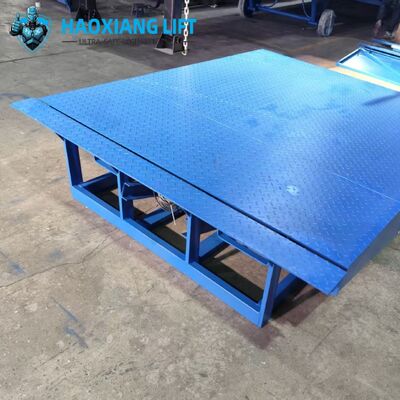

Large Image : Heavy-Duty Hydraulic Dock Leveler – High-Strength Steel for Smooth Warehousing Cargo Handling

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×5

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 1500-2000 /UNIT
Packaging Details:	Naked packaging
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Contact Now

Heavy-Duty Hydraulic Dock Leveler – High-Strength Steel for Smooth Warehousing Cargo Handling

Description

Control System:	Push Button	Color:	Blue,Customizable
Power Supply:	220v/380v	Certifications:	CE, ISO 9001
Warranty:	12 Months	Load:	6-20 T
Highlight:	heavy-duty hydraulic dock leveler , high-strength steel dock leveler , hydraulic leveler for warehousing

Heavy-Duty Hydraulic Dock Leveler – High-Strength Steel for Smooth Warehousing Cargo Handling

Dock levelers stand as the vital link for smooth cargo transfer, featuring precision-engineered hydraulic systems: a main cylinder lifts the platform, while a secondary cylinder fine-tunes the lip plate to form a tight, gap-free seal with truck beds. This fixed hydraulic dock leveler adapts flexibly to diverse heights and transport demands, overcoming the uneven load-handling drawbacks of traditional models and integrating seamlessly with most trucks and containers.

Key Features and Benefits

User-Friendly Electro-Hydraulic Control: The intuitive electro-hydraulic operation simplifies workflows, boosting loading efficiency while cutting labor time and operational expenses.
Warp-Resistant High-Tensile Steel Frame: Crafted from manganese steel square tubes, the frame offers exceptional load-bearing capacity and structural stability, resisting deformation even under heavy-duty use.
Secure Maintenance Safety Brace: A robust safety brace safeguards maintenance staff during internal inspections or repairs of the dock bridge, reducing on-site safety risks.
Leak-Proof Hydraulic Assembly: The sealed, integrated hydraulic unit boasts tight closures to prevent oil leakage and ensure consistent long-term performance.
High-Power Hydraulic Cylinders: Equipped with a stable power pack, these cylinders deliver strong driving force and reliable sealing, ensuring smooth, consistent lifting and lowering.
Anti-Slip Patterned Steel Platform: The platform's textured surface eliminates slip hazards during elevation or descent, even in damp, dusty, or harsh working conditions.
Optimized 5-Degree Lip Plate Angle: This precision incline ensures a tighter, more secure fit with truck beds, minimizing gaps to enhance cargo transfer safety.
Long-Shaft Linkage Structure: The lip plate is connected via a long-shaft joint, reinforcing structural strength and overall operational reliability.
Rear U-Shaped Design: Enables smoother, more efficient vehicle docking, speeding up the cargo transfer process.

Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements

Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

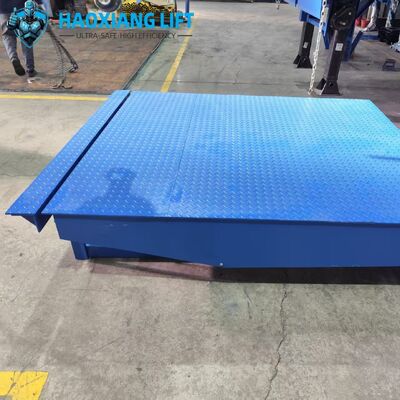

Product Images

About Our Company

Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment, a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters.

We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts". The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management.

We have served more than 40,000 companies and 45 installation teams, which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
