2Tons 4M Vertical Freight Elevator Platform Fixed Hydraulic Cargo Lift

2Tons 4M Vertical Freight Elevator Platform Fixed Hydraulic Cargo Lift

Brand Name: HAOXIANG BRAND
Model Number: DSL2-4
MOQ: 1 unit
Price: USD2300- USD6200 / UNIT
Payment Terms: T/T
Supply Ability: 1500 UNITS PER YEAR
Detail Information
Place of Origin:
GUANGDONG,CHINA
Certification:
CE/ISO
Product Name:
Fixed Hydraulic Cargo Lift
Height:
4M
Load Capacity:
2tons
Installation:
In The Pit/on The Ground
Emergency Stop:
Emergency Stop At Each Floor Level
Platform Size:
2000*1900mm
Overlaod Warning:
When Lift Overload, Lift Stop Work And Warning
Country Of Origin:
Made In China
Packaging Details:
Naked packaging
Highlight:

2Tons hydraulic cargo lift

,

4M vertical freight elevator

,

fixed hydraulic lift platform

Product Description
2Tons 4M Vertical Freight Elevator Platform Fixed Hydraulic Cargo Lift
Product Specifications
Product name Fixed Hydraulic Cargo Lift
Installation in The Pit/on The Ground
Platform Size 2000*1900mm
Emergency Stop Emergency Stop at Each Floor Level
Driven Type Hydraulic
Overlaod Warning When Lift Overload, Lift Stop Work and Warning
Model DSL 2T-4M
What is the Hydraulic Guide Rail Lift?

The essential function of a freight lift is to raise and lower cargo between floors. It is adaptable for use in factories that transport raw or finished goods, warehouses engaged in storage and logistics, malls that relocate merchandise and displays, and hotels managing food service and laundry distribution.

Key Benefits
  • Durable Hydraulic Unit: Ensures precise and reliable vertical lifting in demanding conditions.
  • Engineered for Heaviness: Moves tons of material with ease and stability.
  • Universal Suitability: Functions perfectly indoors or outdoors, regardless of environment.
  • Integrated Safety System: Overload sensors, stop functions, and gate barriers provide security.
  • Vertical-Smart Design: Slim design optimizes upward lifting without wasting space.
Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements.

Model Rated load (kg) Lifting stroke (mm) Lowering height (mm) Table size (mm) Lifting time Motor power (kw)
DSL1-3 1000 3000 100 2000×1800 6m/min 3
DSL2-4 2000 4000 150 2000×1800 6m/min 4
DSL2-10 2000 10000 200 3000×3500 6m/min 4
DSL3-5 3000 5000 150 3000×1800 6m/min 5.5
DSL3-8 3000 8000 150 2000×1700 6m/min 5.5
DSL4-5 4000 5000 250 3000×4000 6m/min 7.5
DSL4-10 4000 10000 150 5000×3000 6m/min 7.5
DSL5-6 5000 6000 400 5800×3000 6m/min 11
Product Gallery

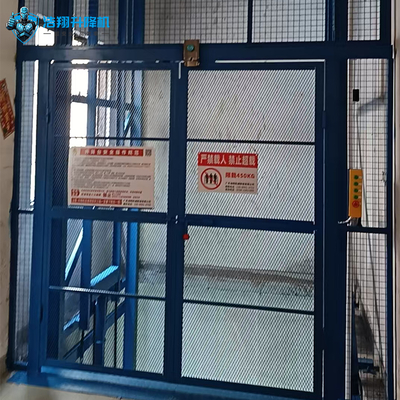

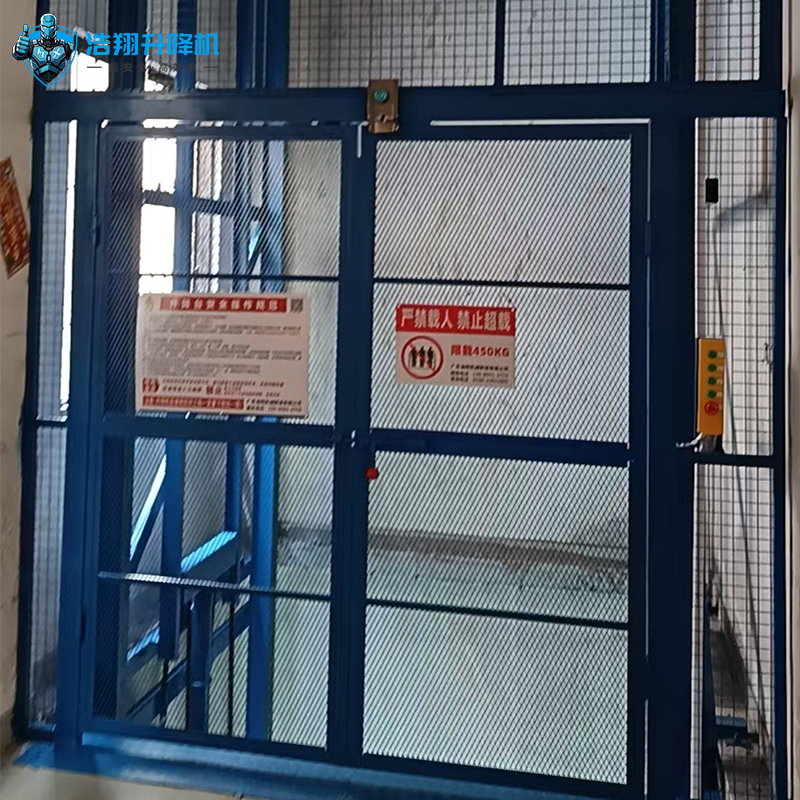

2Tons 4M Vertical Freight Elevator Platform Fixed Hydraulic Cargo Lift 0 2Tons 4M Vertical Freight Elevator Platform Fixed Hydraulic Cargo Lift 1 2Tons 4M Vertical Freight Elevator Platform Fixed Hydraulic Cargo Lift 2
