Cargo Lift 1000Kg 2000Kg 5000Kg Hydraulic Warehouse Cargo Elevator Lift

Large Image : Cargo Lift 1000Kg 2000Kg 5000Kg Hydraulic Warehouse Cargo Elevator Lift

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	DSL 3-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	USD2300- USD5000 / UNIT
Packaging Details:	Naked packaging
Delivery Time:	7-15 working days
Payment Terms:	T/T
Supply Ability:	1500 UNITS PER YEAR

Contact Now

Cargo Lift 1000Kg 2000Kg 5000Kg Hydraulic Warehouse Cargo Elevator Lift

Description

Product Name:	Hydraulic Guide Rail Lift	Usage:	Warehouse, Factory, Construction Site
Entrance:	Front/Through/90 Degree	Warranty:	1 Year
Platform Size:	2m X 2m	Hs Code:	842890
Country Of Origin:	Made In China	Lift Capacity:	3000kg
Surface Treatment:	Anti-Rust Paint	Main Function:	Lifting Cargos
Highlight:	1000kg hydraulic cargo lift , 2000kg warehouse elevator lift , 5000kg freight platform lift

Cargo Lift 1000Kg 2000Kg 5000Kg Hydraulic Warehouse Cargo Elevator Lift

Product Specifications

Attribute	Value
Product Name	Hydraulic Guide Rail Lift
Usage	Warehouse, factory, construction site
Entrance	Front/Through/90 Degree
Warranty	1 year
Platform Size	2m x 2m
Hs Code	842890
Country Of Origin	Made in China
Lift Capacity	3000kg
Surface Treatment	Anti-Rust Paint
Main Function	Lifting Cargos

Product Description

Commercial material lifts are built to facilitate the movement of goods between different floors. Whether for hotels, logistics facilities, automotive service shops, or hypermarkets, our models are tailored to meet the needs of each setting equally.

Key Features

Low-Noise Functioning: With quiet operation and zero vibration, the hydraulic motor helps keep the workplace calm and undisturbed.
Simple-to-Use Controls: Easy-to-comprehend control panels shorten the onboarding process for staff and speed up day-to-day operations.
Flexible Size Options: Adjustable widths, depths, and heights align perfectly with the layout of facilities and the unique requirements of cargo.
Durable Build Quality: Premium alloys and protective coatings withstand continuous heavy use, minimizing the need for frequent maintenance.
Green Operational Performance: Enhanced hydraulic systems reduce energy usage, which not only lowers costs but also promotes sustainable workflow practices.

Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements

Model	Rated load (kg)	Lifting stroke (mm)	Lowering height (mm)	Table size (mm)	Lifting time	Motor power (kw)
DSL1-3	1000	3000	100	2000×1800	6m/min	3
DSL1-12	1000	12000	100	2500×2000	6m/min	3
DSL2-4	2000	4000	150	2000×1800	6m/min	4
DSL2-10	2000	10000	200	3000×3500	6m/min	4
DSL3-5	3000	5000	150	3000×1800	6m/min	5.5
DSL3-8	3000	8000	150	2000×1700	6m/min	5.5
DSL4-5	4000	5000	250	3000×4000	6m/min	7.5
DSL4-10	4000	10000	150	5000×3000	6m/min	7.5
DSL5-6	5000	6000	400	5800×3000	6m/min	11
DSL10-15	10000	15000	400	7000×5000	6m/min	18.5
DSL15-9	15000	9000	800	8000×4000	6m/min	30
DSL15-10	15000	10000	800	9000×4500	6m/min	30

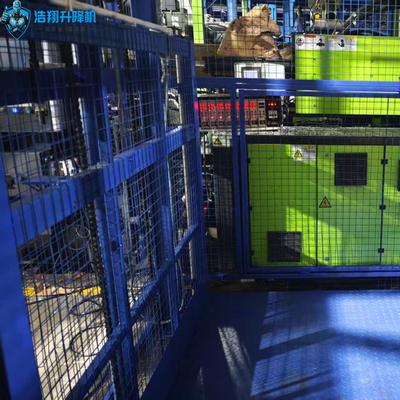

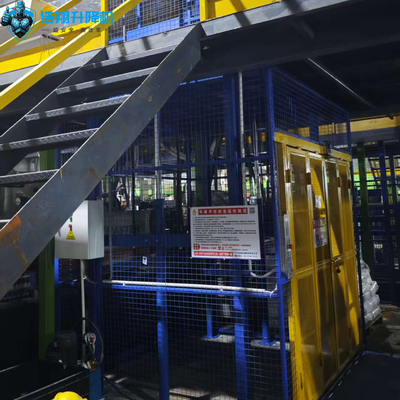

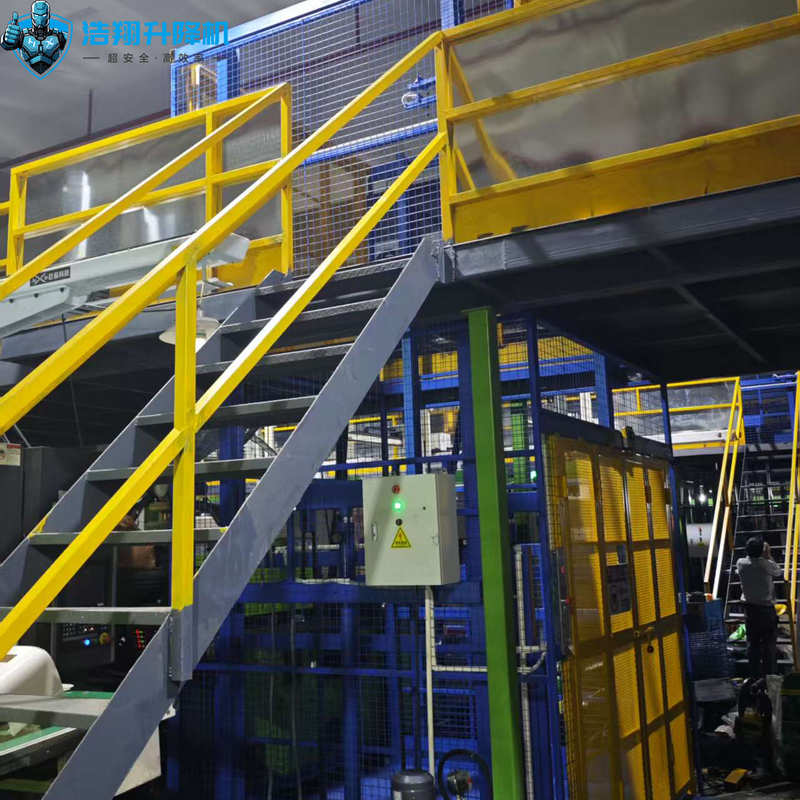

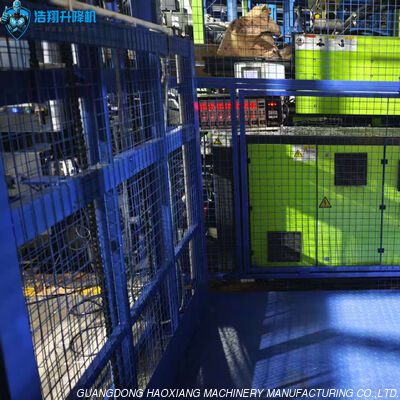

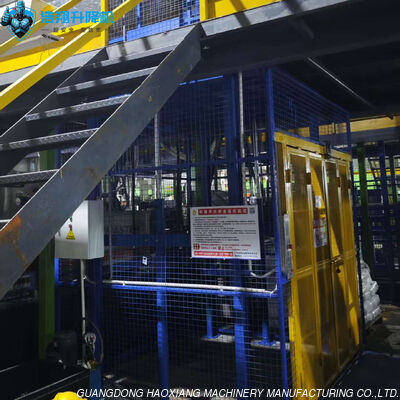

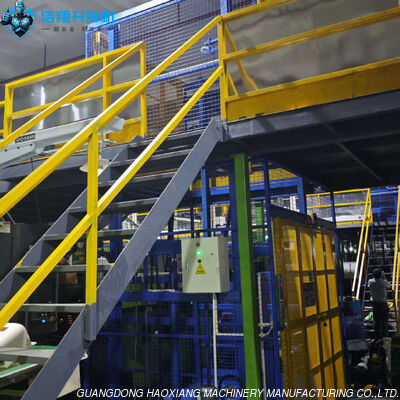

Product Images

About Our Company

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.

Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.

Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence.
