Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift

Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift
Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift

Large Image :  Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: HAOXIANG BRAND
Certification: CE/ISO
Model Number: DSL 3-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD2300- USD5000 / UNIT
Packaging Details: Naked packaging
Delivery Time: 7-15 WORKING DAYS
Payment Terms: T/T
Supply Ability: 1500 UNITS PER YEAR

Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift

Description
Product Name: Hydraulic Guide Rail Lift Stroke Height: 8m
Material: Steel Surface Treatment: Anti-Rust Paint
Type: Cargo Lifts Table Size: L2000mm×W2000mm,Customizable
Platform Size: Customizable Speed: Up To 0.5 M/s
Finish: Powder Coated Safety Features: Emergency Stop Button, Overload Protection, Safety Gates
Highlight:

industrial cargo lift platform

,

warehouse goods lift guide

,

home cargo lift platform

Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift
Product Specifications
Attribute Value
Product Name Hydraulic Guide Rail Lift
Stroke Height 8m
Material Steel
Surface Treatment Anti-Rust Paint
Type Cargo Lifts
Table Size L2000mm×W2000mm, Customizable
Platform Size Customizable
Speed Up to 0.5 m/s
Finish Powder coated
Safety Features Emergency stop button, overload protection, safety gates
About the Hydraulic Guide Rail Lift

Designed to move goods across floors, commercial material lifts serve as a practical tool for vertical cargo transport. Our product line caters to the needs of hotels, logistics centers, automotive workshops, and hypermarkets with equal proficiency.

Their most prominent characteristic is total customizability: voltage, table dimensions, lift height, weight-bearing capacity, and loading direction all allow adjustments, and guardrail doors can also be installed upon request. The installation work is simple, and the demands on the on-site space and conditions are minimal.

Key Benefits
  • Quiet Operation Performance: The hydraulic motor operates with low noise and no vibration, effectively maintaining a peaceful workplace environment.
  • User-Friendly Controls: Intuitive control panels cut down on employee training time and enhance the efficiency of daily operations.
  • Customizable Sizes: Tailored width, depth, and height options match both facility layouts and cargo-specific needs.
  • Long-Lasting Construction: High-grade alloys and protective coatings stand up to non-stop heavy-duty use, decreasing the frequency of maintenance.
  • Eco-Friendly Functionality: Advanced hydraulic systems reduce energy consumption, lowering operational costs while supporting sustainable work processes.
Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements.

Model Rated load (kg) Lifting stroke (mm) Lowering height (mm) Table size (mm) Lifting time Motor power (kw)
DSL1-3 1000 3000 100 2000×1800 6m/min 3
DSL1-12 1000 12000 100 2500×2000 6m/min 3
DSL2-4 2000 4000 150 2000×1800 6m/min 4
DSL2-10 2000 10000 200 3000×3500 6m/min 4
DSL3-5 3000 5000 150 3000×1800 6m/min 5.5
DSL3-8 3000 8000 150 2000×1700 6m/min 5.5
DSL4-5 4000 5000 250 3000×4000 6m/min 7.5
DSL4-10 4000 10000 150 5000×3000 6m/min 7.5
DSL5-6 5000 6000 400 5800×3000 6m/min 11
DSL10-15 10000 15000 400 7000×5000 6m/min 18.5
DSL15-9 15000 9000 800 8000×4000 6m/min 30
DSL15-10 15000 10000 800 9000×4500 6m/min 30

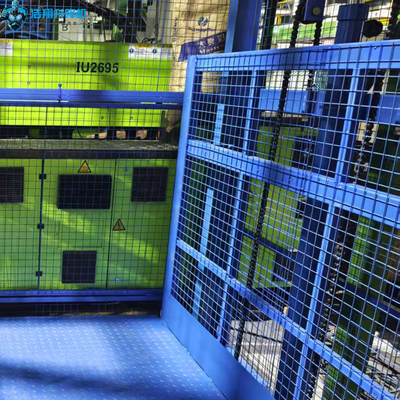

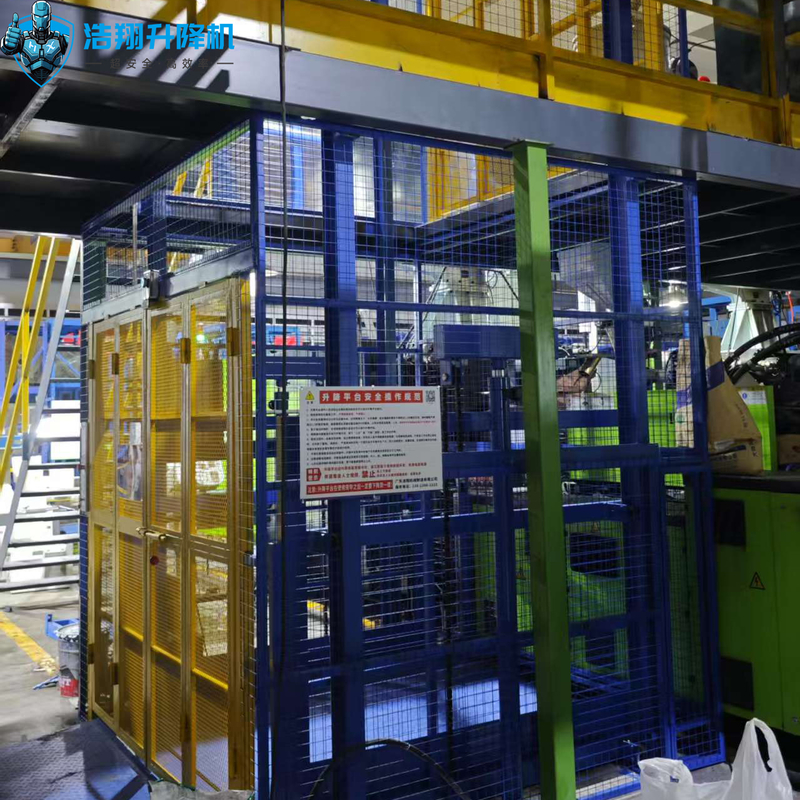

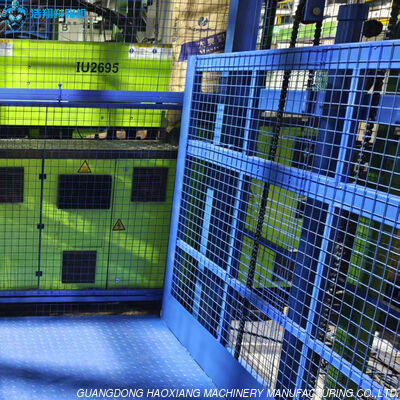

Product Images
Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift 0 Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift 1 Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift 2
About Our Company

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.

Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.

Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide. We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.

Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift 3 Industrial Home Cargo Goods Lift Platform Lift Warehouse Guide Cargo Lift 4
