CE Certified 2-5 Floor Hydraulic Freight Elevator - 1500kg-5000kg Cargo Lift for Warehouse Vertical Material Handling

Large Image : CE Certified 2-5 Floor Hydraulic Freight Elevator - 1500kg-5000kg Cargo Lift for Warehouse Vertical Material Handling

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	DSL 3-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	USD2300- USD5000 / UNIT
Packaging Details:	Naked packaging
Delivery Time:	7-15 working days
Payment Terms:	T/T
Supply Ability:	1500 UNITS PER YEAR

Contact Now

CE Certified 2-5 Floor Hydraulic Freight Elevator - 1500kg-5000kg Cargo Lift for Warehouse Vertical Material Handling

Description

Product Name:	Hydraulic Guide Rail Lift	Lifting Height:	Up To 50 Meters,Customizable
Usage:	Loading And Unloading	Application:	Warehouse, Factory, Distribution Center
Door Type:	Manual/ Sliding/Swing	HS Code:	842890
Lifting Speed:	0.1m/s	Stroke Height:	8m
Table Size:	L2000mm×W2000mm,Customizable	Floor Height:	1-7th Floor/Customizable
Highlight:	CE certified hydraulic freight elevator , 1500kg-5000kg warehouse cargo lift , vertical material handling platform lift

CE Certified 2-5 Floor Hydraulic Freight Elevator - 1500kg-5000kg Cargo Lift for Warehouse Vertical Material Handling

Product Specifications

Product Name	Hydraulic Guide Rail Lift
Lifting Height	Up to 50 meters, Customizable
Usage	Loading And Unloading
Application	Warehouse, Factory, Distribution Center
Door Type	Manual/Sliding/Swing
HS Code	842890
Lifting Speed	0.1m/s
Stroke Height	8m
Table Size	L2000mm×W2000mm, Customizable
Floor Height	1-7th Floor/Customizable

Key Features

Power Supply	AC 380V/50Hz
Pit Foundation Depth	150-300mm
Installation	Platform in pit or on ground
Lead time (days)	15-20 Working days

Product Overview

Business cargo elevators are built for transporting goods. Our lifts serve hotels, logistics parks, auto service shops, and big-box stores, shifting freight between floors. The primary advantage is full bespoke capability: voltage, platform size, lift height, capacity, and loading orientation are all selectable, with optional guardrail doors. Minimal site requirements and easy setup complete the package.

Key Benefits

Low-Decibel Operation: Hydraulics run quietly, keeping ambient noise low.
User-Focused Controls: Simple interfaces reduce operator learning curves and enhance efficiency.
Configurable Sizes: Choose dimensions that match facility constraints and cargo types.
Heavy-Duty Build: Durable materials withstand rigorous use, cutting maintenance.
Eco-Efficient Drive: The hydraulic system minimizes energy draw, saving costs and the planet.

Technical Specifications

Model	Rated load (kg)	Lifting stroke (mm)	Lowering height (mm)	Table size (mm)	Lifting time	Motor power (kw)
DSL1-3	1000	3000	100	2000×1800	6m/min	3
DSL1-12	1000	12000	100	2500×2000	6m/min	3
DSL2-4	2000	4000	150	2000×1800	6m/min	4
DSL2-10	2000	10000	200	3000×3500	6m/min	4
DSL3-5	3000	5000	150	3000×1800	6m/min	5.5
DSL3-8	3000	8000	150	2000×1700	6m/min	5.5
DSL4-5	4000	5000	250	3000×4000	6m/min	7.5
DSL4-10	4000	10000	150	5000×3000	6m/min	7.5
DSL5-6	5000	6000	400	5800×3000	6m/min	11
DSL10-15	10000	15000	400	7000×5000	6m/min	18.5
DSL15-9	15000	9000	800	8000×4000	6m/min	30
DSL15-10	15000	10000	800	9000×4500	6m/min	30

Specifications, sizes and colors can be customized according to customer requirements.

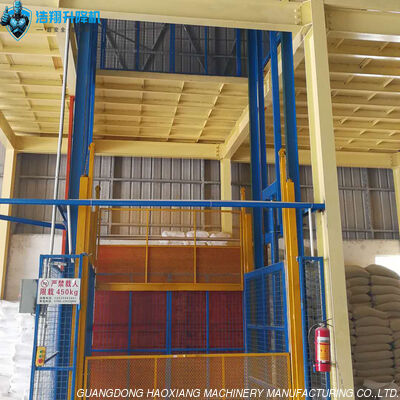

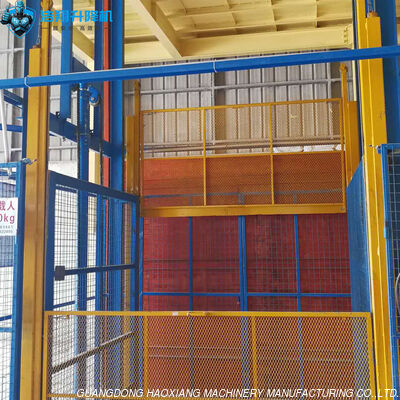

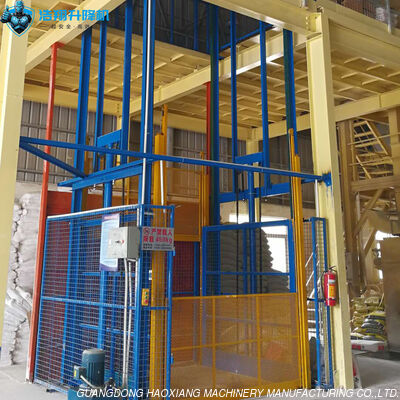

Product Images

About Our Company

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.

Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.

Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide.

We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
