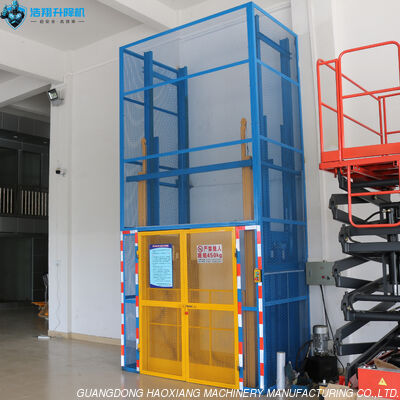

Cargo Lift Elevator - 3000kg Hydraulic Freight Platform for Warehouse Vertical Goods Lift

Name: Cargo Lift Elevator - 3000kg Hydraulic Freight Platform for Warehouse Vertical Goods Lift
Brand: Guangdong Haoxiang Machinery Manufacturing Co., Ltd.
SKU: DSL 3-6
Price: 3,650.00 USD
Availability: InStock

All Products

Hydraulic Cargo Lift
(30)

Industrial Hydraulic Lift
(29)

Freight Platform Lift
(29)

Industrial Goods Lift
(29)

Hydraulic Leveler
(17)

Mobile Loading Dock
(43)

Portable Forklift Ramp
(41)

Loading Dock Leveler
(16)

Fixed Dock Leveler
(15)

Fixed Scissor Lift Platform
(23)

Hydraulic Scissor Lift Table
(23)

Certification

Customer Reviews

great deal,the seller is very helpful.

—— Kevin

My clients are very satified with the products,the quality is very good.

—— Amy

I'm Online Chat Now

Cargo Lift Elevator - 3000kg Hydraulic Freight Platform for Warehouse Vertical Goods Lift

Large Image : Cargo Lift Elevator - 3000kg Hydraulic Freight Platform for Warehouse Vertical Goods Lift

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	DSL 3-6

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD2300- USD5000 / UNIT
Packaging Details:	Naked packaging
Delivery Time:	7-15 working days
Payment Terms:	T/T
Supply Ability:	1500 UNITS PER YEAR

Contact Now

Cargo Lift Elevator - 3000kg Hydraulic Freight Platform for Warehouse Vertical Goods Lift

Description

Product Name:	Hydraulic Guide Rail Lift	Installation:	Indoor/Outdoor
Floor Height:	1-7th Floor/Customizable	Control Mode:	Hydraulic
Material:	Steel	Door Type:	Manual/Automatic
Entrance:	Front/Through/90 Degree	HS Code:	842890
Power Supply:	AC 380V/50Hz	Type:	Cargo Lifts
Highlight:	3000kg hydraulic freight elevator , warehouse vertical goods lift , industrial hydraulic cargo lift

Cargo Lift Elevator - 3000kg Hydraulic Freight Platform for Warehouse Vertical Goods Lift

Product Specifications

Attribute	Value
Product Name	Hydraulic Guide Rail Lift
Installation	Indoor/Outdoor
Floor Height	1-7th Floor/Customizable
Control Mode	Hydraulic
Material	Steel
Door Type	Manual/Automatic
Entrance	Front/Through/90 Degree
HS Code	842890
Power Supply	AC 380V/50Hz
Type	Cargo Lifts

Key Features

Parameter	Specification
Product Name	Hydraulic Guide Rail Lift
Certification	CE/ISO
Door	Manual/Sliding/Swing
Entrance	Front/Through/90 Degree
Lead time (days)	15-20 Working days

Product Overview

Commercial freight elevators move goods efficiently. You'll see ours in hotels, warehouses, car repair garages, and large supermarkets, transferring loads between levels. Their standout quality is customization: specify voltage, table area, lifting stroke, weight limit, and entry direction, and add safety rail doors if desired. Installation demands are low and straightforward.

Key Benefits

Resilient Hydraulic Core: A high-capacity hydraulic assembly enables smooth, precise lifting of weighty freight with unwavering reliability.
Large-Scale Load Handling: Built for extreme mass, it transports bulky items easily, streamlining material handling.
Indoor & Outdoor Versatility: Weather-resistant elements and a sturdy build suit both sheltered and exposed sites.
Advanced Safety Layer: Emergency-stop switches, safety gates, and overload cut-outs protect operators and cargo alike.
Vertical Footprint Efficiency: A compact design exploits height, preserving floor space.

Technical Specifications

Model	Rated load (kg)	Lifting stroke (mm)	Lowering height (mm)	Table size (mm)	Lifting time	Motor power (kw)
DSL1-3	1000	3000	100	2000×1800	6m/min	3
DSL1-12	1000	12000	100	2500×2000	6m/min	3
DSL2-4	2000	4000	150	2000×1800	6m/min	4
DSL2-10	2000	10000	200	3000×3500	6m/min	4
DSL3-5	3000	5000	150	3000×1800	6m/min	5.5
DSL3-8	3000	8000	150	2000×1700	6m/min	5.5
DSL4-5	4000	5000	250	3000×4000	6m/min	7.5
DSL4-10	4000	10000	150	5000×3000	6m/min	7.5
DSL5-6	5000	6000	400	5800×3000	6m/min	11
DSL10-15	10000	15000	400	7000×5000	6m/min	18.5
DSL15-9	15000	9000	800	8000×4000	6m/min	30
DSL15-10	15000	10000	800	9000×4500	6m/min	30

Specifications, sizes and colors can be customized according to customer requirements

Product Images

About Our Company

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.

Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.

Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide. We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
