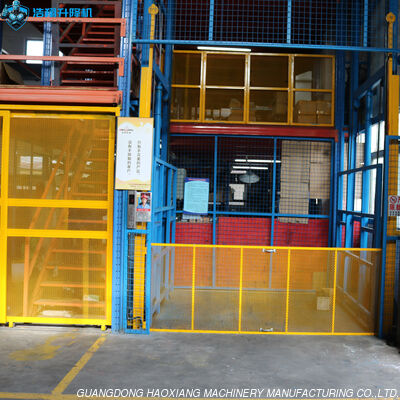

Hot Selling Electric Hydraulic Small Lifting Platform Factory Warehouse Cargo Lift

Large Image : Hot Selling Electric Hydraulic Small Lifting Platform Factory Warehouse Cargo Lift

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	DSL 3-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD2300- USD5000 / UNIT
Packaging Details:	Naked packaging
Delivery Time:	7-15 WORKING DAYS
Payment Terms:	T/T
Supply Ability:	1500 UNITS PER YEAR

Contact Now

Hot Selling Electric Hydraulic Small Lifting Platform Factory Warehouse Cargo Lift

Description

Product Name:	Hydraulic Guide Rail Lift	Installation:	Platform In Pit Or On Ground
Control Mode:	Hydraulic	Floor Height:	1-7th Floor/Customizable
Safety Features:	Emergency Stop, Overload Protection, Safety Brake	Table Size:	L1920*W1300mm Or Customized
Usage:	Loading And Unloading Goods From Trucks Or Containers	Application:	Warehouse/Dock/Logistics Center
Material:	Steel	Type:	Cargo Lifts
Highlight:	electric hydraulic cargo lift , small lifting platform warehouse , factory cargo lift with warranty

Hot Selling Electric Hydraulic Small Lifting Platform Factory Warehouse Cargo Lift

Product Specifications

Product Name	Hydraulic Guide Rail Lift
Installation	Platform in pit or on ground
Control Mode	Hydraulic
Floor Height	1-7th Floor/Customizable
Safety Features	Emergency Stop, Overload Protection, Safety Brake
Table Size	L1920*W1300mm or Customized
Usage	Loading and unloading goods from trucks or containers
Application	Warehouse/Dock/Logistics Center
Material	Steel
Type	Cargo Lifts

Product Overview

Business-grade cargo elevators move merchandise. You'll find ours in hotels, warehouses, car shops, and large grocery chains, lifting goods between levels. Their hallmark is bespoke design: choose voltage, platform dimensions, lifting range, load limit, and entry side; optional guard gates are also on offer. Minimal site prep and easy installation seal the deal.

Key Benefits

High-Thrust Hydraulics: A muscular hydraulic circuit powers the lift, ensuring silky, dependable elevation of heavy freight with meticulous regulation.
Substantial Load Rating: Designed for high tonnage, the elevator moves hefty or outsized pieces without strain, optimizing material flow.
Dual-Environment Suitability: Weather-sealed parts and a robust shell thrive indoors as well as in the elements.
Multi-Layer Safety Array: Emergency stops, safety doors, and overload lockouts provide total protection for personnel and goods.
Vertical Space Maximizer: A sleek footprint capitalizes on height rather than floor area, expanding storage capacity.

Technical Specifications

Model	Rated load (kg)	Lifting stroke (mm)	Lowering height (mm)	Table size (mm)	Lifting time	Motor power (kw)
DSL1-3	1000	3000	100	2000×1800	6m/min	3
DSL1-12	1000	12000	100	2500×2000	6m/min	3
DSL2-4	2000	4000	150	2000×1800	6m/min	4
DSL2-10	2000	10000	200	3000×3500	6m/min	4
DSL3-5	3000	5000	150	3000×1800	6m/min	5.5
DSL3-8	3000	8000	150	2000×1700	6m/min	5.5
DSL4-5	4000	5000	250	3000×4000	6m/min	7.5
DSL4-10	4000	10000	150	5000×3000	6m/min	7.5
DSL5-6	5000	6000	400	5800×3000	6m/min	11
DSL10-15	10000	15000	400	7000×5000	6m/min	18.5
DSL15-9	15000	9000	800	8000×4000	6m/min	30
DSL15-10	15000	10000	800	9000×4500	6m/min	30

Specifications, sizes and colors can be customized according to customer requirements.

Product Images

About Our Company

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.

Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.

Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide.
