CE/ISO Hydraulic Small Cargo Lift Platform Freight Elevator Cargo Lift
Product key attributes
| Parameter |
Specification |
| Product Name |
Hydraulic Guide Rail Lift |
| Color |
Customers′ Requirements |
| Control |
Digital Display Control Panel |
| Transport Package |
Wooden Case |
| Drive Mode |
Electrical Hydraulic |
What is the Hydraulic Guide Rail Lift?
The guide rail type lifting cargo elevator is a non scissor type hydraulic lifting mechanical equipment. Used for the transportation of goods between floors of industrial factories, restaurants, and restaurants on the second and third floors. It is suitable for workplaces that cannot excavate pits. And there is no need for upper suspension points, with diverse forms (single column, double column, four column). The equipment runs smoothly, the operation is simple and reliable, and the transportation of goods is economical and convenient.
What are the Benefits of a Hydraulic Guide Rail Lift?
1.With a compact, robust structure, it excels in high-frequency, non-stop operations, proving highly adaptable to intense workloads.
2.Lifting is consistently smooth, meeting the demands of moving heavy-tonnage items gently. A hydraulic system with overload protection is included to enhance operational safety.
3.Its compact build and simple design make both maintenance and daily use straightforward and flexible, reducing operational hurdles.
4.Utilizing a high-quality pumping station group, it operates quietly and boasts a long lifespan, ensuring sustained performance over time.
5.A wide array of optional add-ons provides comprehensive customization, fully addressing diverse customer needs.
6.It runs cleanly with zero pollution, contributing positively to environmental preservation.
Products model and parameter series of the Hydraulic Guide Rail lift.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Lowering height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| DSL1-3 |
1000 |
3000 |
100 |
2000×1800 |
6m/min |
3 |
| DSL1-12 |
1000 |
12000 |
100 |
2500×2000 |
6m/min |
3 |
| DSL2-4 |
2000 |
4000 |
150 |
2000×1800 |
6m/min |
4 |
| DSL2-10 |
2000 |
10000 |
200 |
3000×3500 |
6m/min |
4 |
| DSL3-5 |
3000 |
5000 |
150 |
3000×1800 |
6m/min |
5.5 |
| DSL3-8 |
3000 |
8000 |
150 |
2000×1700 |
6m/min |
5.5 |
| DSL4-5 |
4000 |
5000 |
250 |
3000×4000 |
6m/min |
7.5 |
| DSL4-10 |
4000 |
10000 |
150 |
5000×3000 |
6m/min |
7.5 |
| DSL5-6 |
5000 |
6000 |
400 |
5800×3000 |
6m/min |
11 |
| DSL10-15 |
10000 |
15000 |
400 |
7000×5000 |
6m/min |
18.5 |
| DSL15-9 |
15000 |
9000 |
800 |
8000×4000 |
6m/min |
30 |
| DSL15-10 |
15000 |
10000 |
800 |
9000×4500 |
6m/min |
30 |

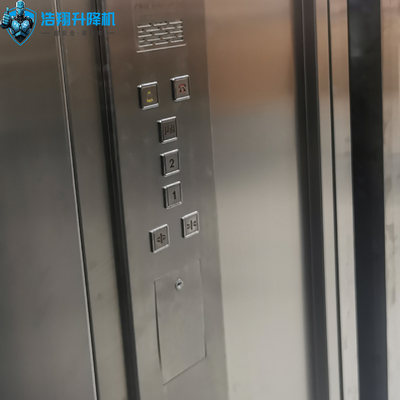

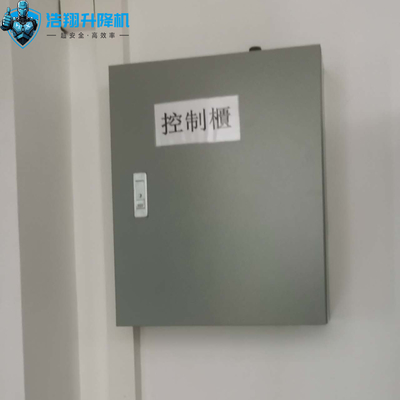

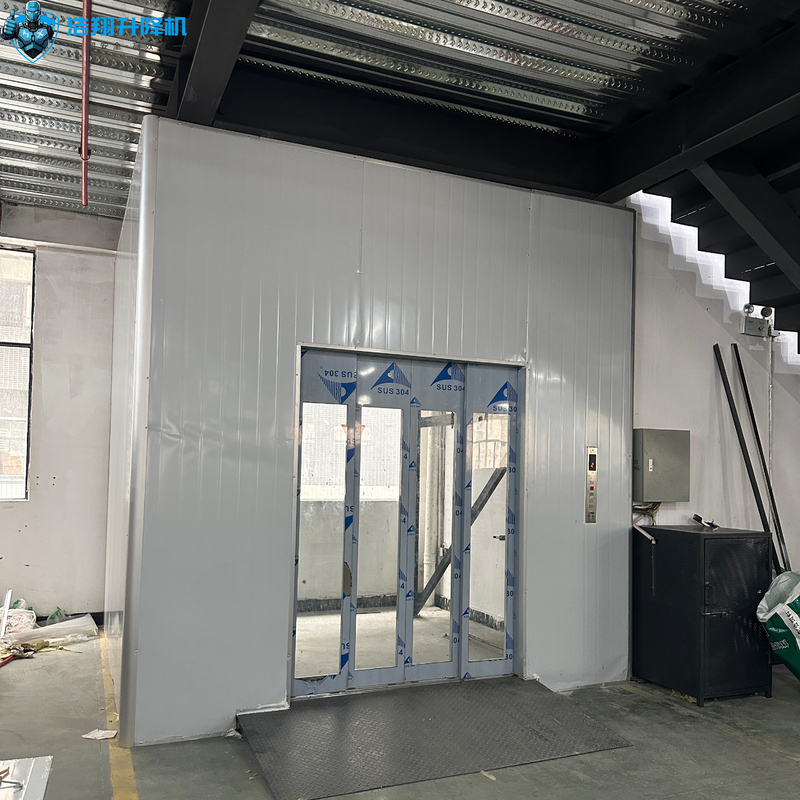

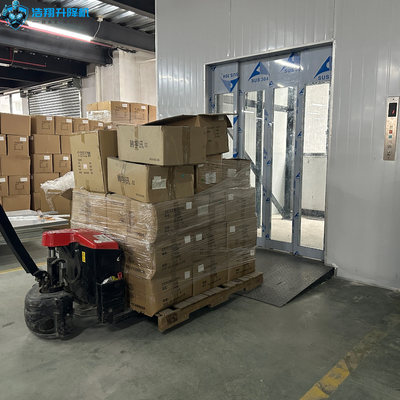

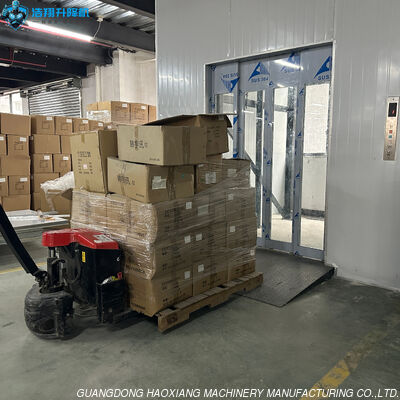

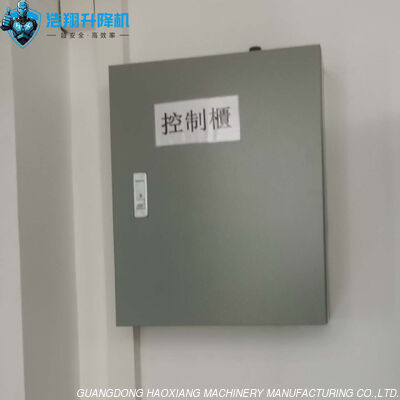

What does the Hydraulic Guide Rail lift look like?
What is the name of our company and where we are?
Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility. Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.
Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide. We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
