Product Details:
|
Product Name: | Hydraulic Guide Rail Lift | Country Of Origin: | Made In China |
---|---|---|---|
Installation: | Indoor/Outdoor | Floor Height: | 1-7th Floor/Customizable |
Pit Foundation Depth: | 150–300mm | Surface Treatment: | Anti-Rust Paint |
Door Type: | Manual/Automatic | Lifting Speed: | 6m/min |
Stroke Height: | 8m | Usage: | Loading And Unloading |
Highlight: | 8m Warehouse Cage Lift,Warehouse Cargo Lift Platform,3t Warehouse Cage Lift |
3t 8m CE Approved Cargo Lift Platform Freight Elevator Cage Lift in Warehouse
Product Key Attributes
Parameter/Feature | Specification Details |
Feature | Explosion-Proof, Insulating |
Materials | Steel |
Core Components | Motor, Other, Gearbox |
Entrance | Front/Through/90 Degree |
Working Speed | 6m/Min |
What is the Hydraulic Guide Rail Lift?
Commercial cargo lifts are widely used in commercial places, such as hotels, warehousing and logistics, car shops, and large supermarkets for cargo transportation between different floors.Commercial has the biggest advantage is that it has very small requirements for the installation environment and is simple to install.
Commercial cargo lifts are elevators that carry goods. Our commercial cargo lifts are widely used in commercial places, such as hotels, warehousing and logistics, car shops, and large supermarkets for cargo transportation between different floors.Its biggest feature is that it can be customized. The voltage, table size, lifting height, load, import and export direction can be customized according to customer needs, and guardrail doors can also be installed. The biggest advantage of the freight cargo lifts are that it has very small requirements for the installation environment and is simple to install.
What are the Benefits of a Hydraulic Guide Rail Lift?
The industrial evolution has paved the way for advancements in technology, transportation, and logistics. One of the key components in the industrial supply chain is cargo transportation. The movement of heavy goods and materials has enabled businesses to operate efficiently and effectively. The development of industrial freight elevator guide rail cargo lift has revolutionized the way we transport heavy loads within industrial spaces. This modern means of cargo transportation has brought about significant improvement in the transport of goods in everyday commercial activities, making logistics and industrial works much more efficient.
The Industrial Freight Elevator Guide Rail Cargo Lift is a highly advanced machinery designed for the transportation of heavy loads. This industrial cargo lift is engineered using high-quality materials, making it durable and reliable. It is specially designed with guide rails and advanced lifting technology that enables it to carry substantial weight and quantities of goods with ease.
Products model and parameter series of the Hydraulic Guide Rail lift.
Technical Parameter | ||||||
Specifications, sizes and colors can be customized according to customer requirements | ||||||
Model | Rated load (kg) | Lifting stroke (mm) | Lowering height (mm) | Table size (mm) | Lifting time | Motor power (kw) |
DSL1-3 | 1000 | 3000 | 100 | 2000×1800 | 6m/min | 3 |
DSL1-12 | 1000 | 12000 | 100 | 2500×2000 | 6m/min | 3 |
DSL2-4 | 2000 | 4000 | 150 | 2000×1800 | 6m/min | 4 |
DSL2-10 | 2000 | 10000 | 200 | 3000×3500 | 6m/min | 4 |
DSL3-5 | 3000 | 5000 | 150 | 3000×1800 | 6m/min | 5.5 |
DSL3-8 | 3000 | 8000 | 150 | 2000×1700 | 6m/min | 5.5 |
DSL4-5 | 4000 | 5000 | 250 | 3000×4000 | 6m/min | 7.5 |
DSL4-10 | 4000 | 10000 | 150 | 5000×3000 | 6m/min | 7.5 |
DSL5-6 | 5000 | 6000 | 400 | 5800×3000 | 6m/min | 11 |
DSL10-15 | 10000 | 15000 | 400 | 7000×5000 | 6m/min | 18.5 |
DSL15-9 | 15000 | 9000 | 800 | 8000×4000 | 6m/min | 30 |
DSL15-10 | 15000 | 10000 | 800 | 9000×4500 | 6m/min | 30 |

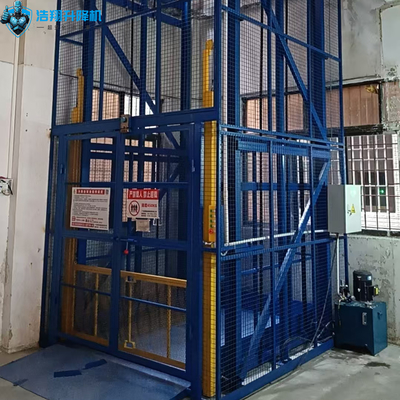

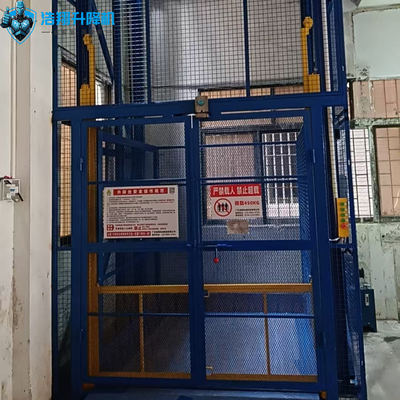

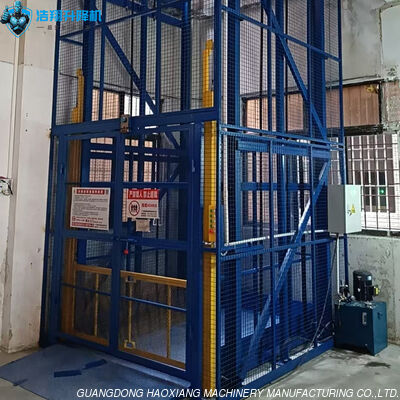

What does the Hydraulic Guide Rail lift look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co.,Ltd. has been a pioneer in the hydraulic machinery industry for over 20 years, earning its reputation as one of China’s Top 10 Hydraulic Equipment Brands. With a focus on innovation and quality, we hold ISO 12100, CE, Guangdong Pollutant Discharge Permit and National High-Tech Enterprise Certification, ensuring our products meet the highest global standards. Our hydraulic lifts are widely used in logistics, construction, and industrial sectors across Southeast Asia, the Middle East, and Africa.
Certification Advantages:
1.National High-Tech Enterprise Certification (GR202344017911)
2.38 Utility Patents (Including hydraulic dampening system ZL2016 2 0893994.9)
3.Guangdong Pollutant Discharge Permit
4.Special Equipment Manufacturing License (TS Certification TS2444360-2027)
Global Impact: 12,000+ units shipped to 50 countries, 35% ASEAN market share
Domestic Impact: Served 40,000+ corporate customers and gained trust with quality, such as JD.com and other large companies
