รายละเอียดสินค้า:
|
| Product Name: | Electric hydraulic dock ramp | Country of Origin: | Made in China |
|---|---|---|---|
| Control Mode: | Hydraulic | Material: | Steel |
| Warranty: | 12 Months | Usage: | Loading and unloading goods from trucks or containers |
| Panel: | Diamond Mesh,customizable | Safety Device: | Guardrail、Safety Chain |
| Ramp Angle: | 12 Degrees | Platform Width: | 2.2 Meters |
| เน้น: | Truck Loading Dock Yard Ramp,Mobile Forklift Dock Yard Ramp |
||
Mobile Forklift Container Truck Loading Unloading Platform Dock Yard Ramp With 2 Wheels
Product Key Attributes
| Parameter/Feature | Specification Details |
| Lift Mechanism | Lift Chain |
| Certification | CE, ISO |
| Lifting System | Hydraulic Lift Cylinders |
| Driven Type | Hydraulic |
| Origin | China |
What is the Hydraulic Dock Ramp?
Mobile loading ramp is cargo handling and forklift with auxiliary equipment to use, adjustable height according to the level of automobile car, truck directly through the device into the interior of the bulk cargo handling, only a single person operation, you can achieve rapid loading and unloading of goods. It enables companies to reduce a lot of labor, improve efficiency, to obtain greater economic benefits.
What are the Benefits of the Hydraulic Dock Ramp?
Heavy-duty mobile tire
Mobile wheels adopt solid tires, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
Adjustable height supporting legs
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles

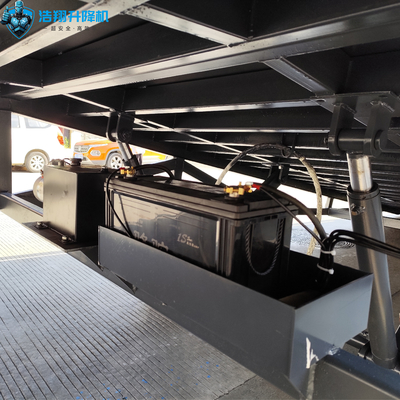

Manual hydraulic elevator system
It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.
Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter | ||||||||
| Specifications, sizes and colors can be customized according to customer requirements | ||||||||
| Model | Load Capacity(t) | Total length(m) | Platform surface(mm) | Slope surface(mm) | Front slat(mm) | Rear flap(mm) | Width(mm) | Lifting height(mm) |
| DCQH10-10 | 10 | 10 | 3000 | 6000 | 400 | 1000 | 2200 | 1200-1680 |
| DCQH12-11 | 12 | 10 | 3000 | 7000 | 400 | 1000 | 2200 | 1200-1680 |
| DCQH15-12 | 15 | 11 | 3000 | 8000 | 400 | 1000 | 2200 | 1200-1680 |
| DCQH20-13 | 20 | 12 | 3000 | 9000 | 400 | 1000 | 2200 | 1200-1680 |
| DCQH10-16 | 10 | 13 | 3000 | 12000 | 400 | 1000 | 2200 | 1200-1680 |

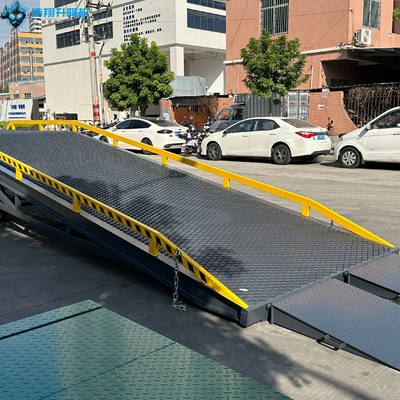

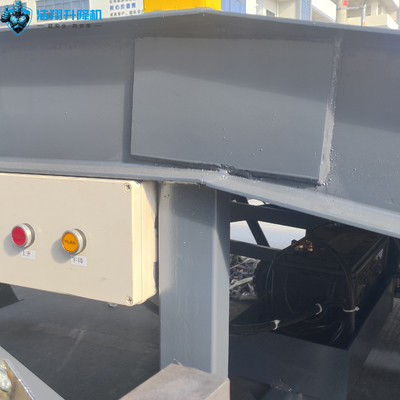

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
