รายละเอียดสินค้า:
|
| ชื่อสินค้า: | ตัวปรับระดับท่าเรือไฮดรอลิก | ประเทศกําเนิด: | ผลิตในจีน |
|---|---|---|---|
| ระยะการปรับ: | สูงสุด 400 มม. ลงไป 300 มม. | แอปพลิเคชัน: | คลังสินค้า/ท่าเรือ/ศูนย์โลจิสติกส์ |
| แหล่งพลังงาน: | ไฟฟ้า | พูดชัดแจ้ง: | เปิด / ปิด |
| ได้รับการรับรอง: | CE/ISO | ลิฟท์ทำงาน: | มากกว่า 20,000 ครั้ง |
| พลังงานไฟฟ้า: | 380V/50เฮิร์ต | การรับประกัน: | 12 เดือน |
| เน้น: | Steel Hydraulic Dock Leveler,Custom Load Hydraulic Dock Leveler,20 Tons Hydraulic Dock Leveler |
||
Steel Hydraulic Dock Leveler Custom Load 6t-20 Tons Hydraulic Loading Dock
Product Key Attributes
| Parameter/Feature | Specification Details |
| Load Capacity | 6T-20T |
| Platform Size | 1830(W)×495(D)×2280(H) mm |
| Safety Features | Safety Legs, Guardrail |
| Core Components | Motor, Oil Pump |
| Lifting Stroke | +400mm/-300mm |
What is the Hydraulic Dock Leveler?
Experience unparalleled performance with our Hydraulic Dock Leveler. Incorporating sophisticated technology, a potent motor and high-capacity oil pump drive the hydraulic lift system, resulting in exceptionally fluid and easy operation, even under maximum 400mm lift conditions with heavy cargo. The standard grey finish can be tailored to your specific color requirements, enhancing your dock's cohesive and professional look. Crafted from rigorously tested, high-quality materials, this ramp is built for extreme durability and extended lifespan in challenging operational settings. Safety is non-negotiable; standard safety legs and a protective guardrail system are included to prevent accidents and injuries, with full adherence to international safety standards assured. Serving ideally as a hydraulic loading dock ramp, hydraulic dock ramp, or hydraulic unloading device, it offers dependable and efficient service. Its user-friendly design facilitates easy installation and straightforward maintenance, ensuring long-term cost-effectiveness and operational reliability—making it the superior choice for all your loading and unloading demands.
What are the Benefits of the Hydraulic Dock Leveler?
Maximize loading dock efficiency with our advanced Hydraulic Dock Leveler. Its state-of-the-art hydraulic drive, featuring a high-torque motor and optimized oil pump, guarantees smooth, effortless lifting cycles up to 480mm, effortlessly managing heavy freight. Presented in a practical grey, custom color finishes are available to unify your dock's appearance. Engineered for longevity, premium materials ensure rugged construction withstands daily industrial stresses. Worker safety is integral: equipped with fail-safe safety legs and a robust guardrail, it significantly reduces injury risks during goods transfer and meets all regulatory mandates. This essential piece of equipment—functioning perfectly as a hydraulic loading ramp, dock leveler, or unloading device—provides consistently reliable performance. Designed for quick setup and requiring only basic maintenance, it delivers significant operational savings and boosts productivity, representing the definitive solution for seamless material handling.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter | ||||
| Specifications, sizes and colors can be customized according to customer requirements | ||||
| Model | Equipment specifications (mm) | Load Capacity (t) | Pit size (mm) | Adjustment range (mm) |
| HX-GTY6×6 | 1830(W)×1830(L)×495(H) | 6-20T | 1870(W)×1830(L)×500(H) | +400/-300 |
| HX-GTY6.5×6 | 1980(W)×1830(L)×495(H) | 6-20T | 2020(W)×1830(L)×500(H) | +400/-300 |
| HX-GTY7×6 | 2130(W)×1830(L)×495(H) | 6-20T | 2170(W)×1830(L)×500(H) | +400/-300 |
| HX-GTY6×8 | 1830(W)×2280(L)×495(H) | 6-20T | 1870(W)×2280(L)×500(H) | +400/-300 |
| HX-GTY6.5×8 | 1980(W)×2280(L)×495(H) | 6-20T | 2020(W)×2280(L)×500(H) | +400/-300 |
| HX-GTY7×8 | 2130(W)×2280(L)×495(H) | 6-20T | 2170(W)×2280(L)×500(H) | +400/-300 |
| HX-GTY6×10 | 1830(W)×2850(L)×495(H) | 6-20T | 1870(W)×2850(L)×500(H) | +400/-300 |
| HX-GTY6.5×10 | 1980(W)×2850(L)×495(H) | 6-20T | 2020(W)×2850(L)×500(H) | +400/-300 |

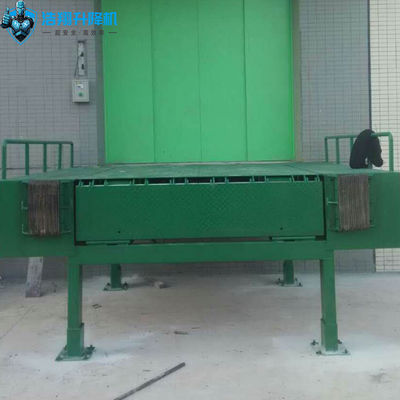

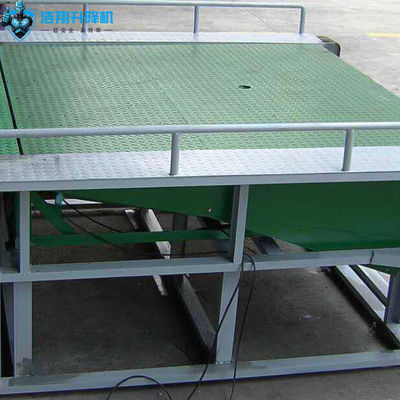

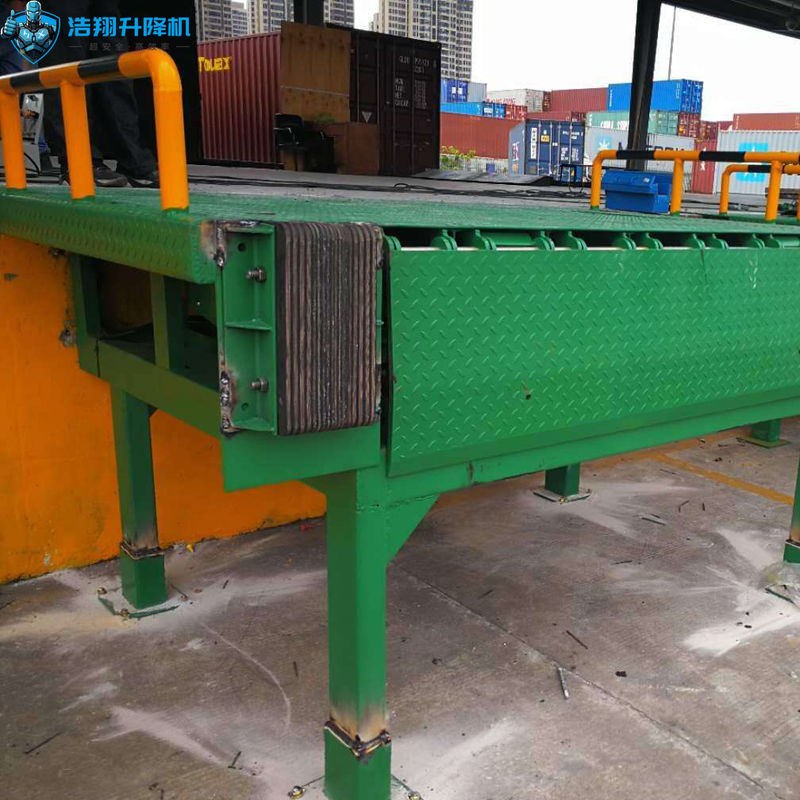

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
