5T-18T Hydraulic lift platform with Adjustable Height – Slip-Resistant Surface for Cargo Transfer

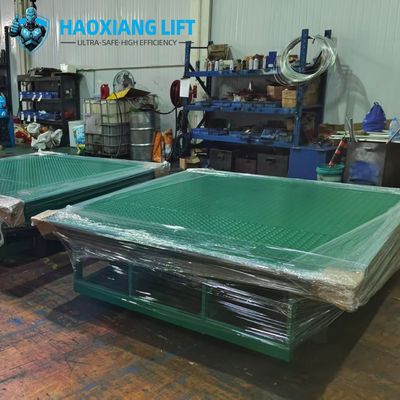

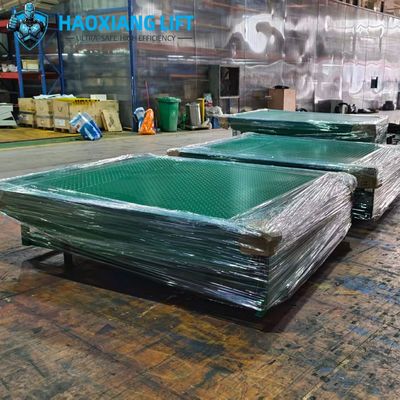

Large Image : 5T-18T Hydraulic lift platform with Adjustable Height – Slip-Resistant Surface for Cargo Transfer

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×5

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 1500-2000 /UNIT
Packaging Details:	Naked packaging
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Contact Now

5T-18T Hydraulic lift platform with Adjustable Height – Slip-Resistant Surface for Cargo Transfer

Description

Surface Treatment:	Powder Coated	Load:	Up To 20 T
Adjustment Range:	+400mm/-300mm	Control Mode:	Hydraulic
Installation Type:	Surface Mounted	Pit Size:	W2000×L2050× H495mm
Highlight:	hydraulic dock leveler adjustable height , slip-resistant dock leveler cargo transfer , fixed dock leveler 5T-18T capacity

5T-18T Hydraulic lift platform with Adjustable Height – Slip-Resistant Surface for Cargo Transfer

Product Overview

Driven by a hydraulic setup, dock levelers use a primary cylinder to raise the platform, while a smaller cylinder controls the lip plate's motion. When the lip plate lies flush against the truck bed, it forms a smooth bridge between the dock and the vehicle--optimizing every step of the loading process. Our fixed hydraulic dock leveler features an adaptable, scalable structure that adjusts to varying height demands and transport scenarios. It works seamlessly with different truck models and containers, solving the uneven handling problems common with traditional levelers.

Key Features and Benefits

User-Friendly Operation System: Electro-hydraulic controls make operation straightforward, improving loading efficiency and reducing both time investment and labor expenses.
Anti-Warp Steel Structure: Crafted from high-strength manganese steel square tubes, the structure offers excellent pressure resistance and maintains its shape, even under heavy loads.
Dependable Safety Brace: A sturdy safety brace protects maintenance staff when they perform inspections or repairs inside the dock bridge, enhancing on-site safety.
Sealed Hydraulic Assembly: The hydraulic unit's tight sealing, robust build, and integrated design prevent oil leakage, ensuring reliable, mess-free operation.
High-Performance Hydraulic Cylinders: Combined with a stable power unit, these cylinders deliver strong driving force and top-tier sealing performance for consistent operation.
Slip-Resistant Platform: The platform's patterned steel surface prevents slipping during lifting or lowering, keeping cargo and personnel safe.
5-Degree Lip Plate Incline: This carefully calibrated angle ensures a tighter fit with the truck bed, reducing movement gaps and improving transfer smoothness.
Long-Shaft Linkage: The lip plate is linked via a long-shaft joint, which boosts structural strength and enhances the leveler's overall reliability.
Rear U-Shaped Design: This configuration allows for a more seamless and convenient connection between the dock and the vehicle, speeding up cargo handling.

Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements

Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

Product Images

Hydraulic dock leveler platform overview showing full structure

Close-up view of hydraulic dock leveler mechanism and components

Hydraulic dock leveler in operation connecting dock to truck

About Our Company

Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment, a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters.

We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts". The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management.

We have served more than 40,000 companies and 45 installation teams, which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.

Haoxiang Machinery manufacturing facility exterior view

Haoxiang Machinery production line with workers assembling equipment
