Heavy Duty Hydraulic Dock Leveler for Efficient Warehouse Loading

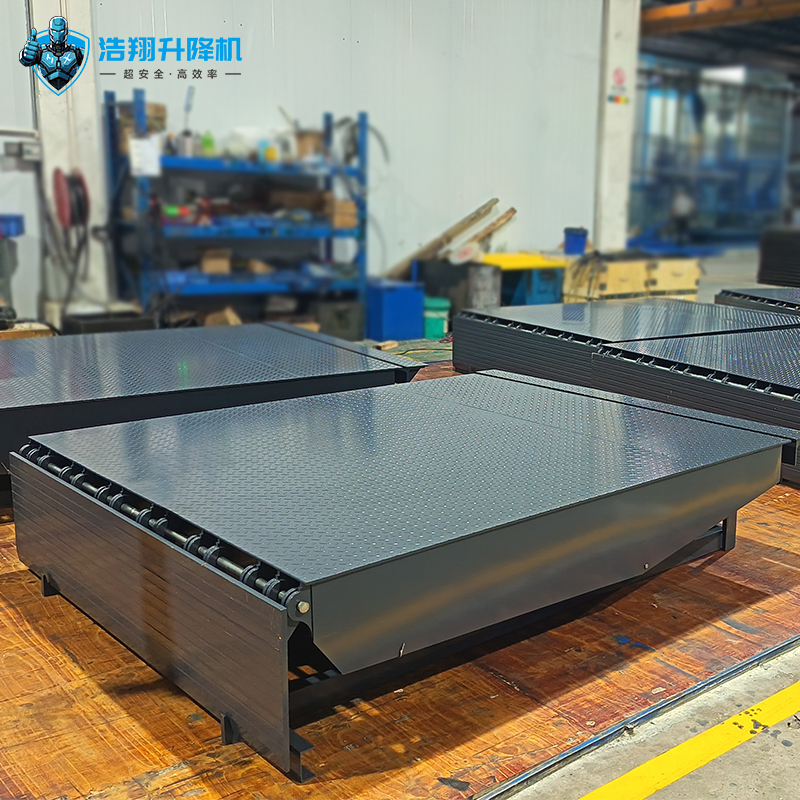

Large Image : Heavy Duty Hydraulic Dock Leveler for Efficient Warehouse Loading

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×8

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	USD 1500-2000 /UNIT
Packaging Details:	Naked packaging
Delivery Time:	7-15 WORKING DAYS
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Contact Now

Heavy Duty Hydraulic Dock Leveler for Efficient Warehouse Loading

Description

Product Name:	Hydraulic Dock Leveler	Type:	Hydraulic
Application:	Warehouses, Logistics Centers, Factories, Loading Bays	Rated Capacity:	6,000kg/8,000kg /10,000kg/12,000kg (customizable)
Platform Size:	1830×2280mm	Height Adjustment Range:	-300mm~400mm
Load:	6-20 T	Certification:	CE/ISO
Highlight:	heavy duty hydraulic dock leveler , hydraulic leveler for warehouse loading , efficient warehouse loading leveler

Heavy Duty Hydraulic Dock Leveler for Efficient Warehouse Loading

Product Overview

Hydraulic dock levelers function through a hydraulic system. The main cylinder lifts the platform deck, while a secondary cylinder extends the lip plate. Once the lip plate lowers onto the truck bed using its own weight, it forms a stable bridge between the warehouse and vehicle, enabling smooth cargo transfer.

The fixed dock leveler with adjustable range is built to match varying truck heights and loading demands, providing strong adaptability. Its versatility accommodates multiple truck and container sizes, solving the height mismatches that conventional loading techniques cannot.

Key Specifications

Parameter	Specification
Product Name	Hydraulic dock leveler
Power Source	Hydraulic/Electric
Power	380V / 240V
Height Adjustment Range	-300MM~400MM
Platform Size	1830*2280mm

Product Benefits

Strong power: Equipped with high-quality oil cylinders and power units, it has abundant power and good sealing performance
High quality steel: The design of high-strength manganese steel rectangular pipes has strong compressive strength and is not easily deformed
Support rod: Equipped with a support rod, it can ensure the safety of maintenance personnel when entering the boarding bridge for maintenance
Hydraulic pump station: Good sealing performance, high strength, and overall module hydraulic leak prevention
Easy to operate: Electric hydraulic, easy to operate, high loading and unloading efficiency, time-saving and labor-saving
Anti slip steel platform: The platform adopts a pattern board, which does not slide on the side up and down
Lip panel details: The lip panel has a 5° inclination angle, which better fits the carriage
U-shaped design at the tail: The U-shaped design at the tail of the platform makes the connection more convenient
Long axis connection: The tongue plate is connected to the platform using a long axis connection, which has high strength and good reliability

Technical Parameters

Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

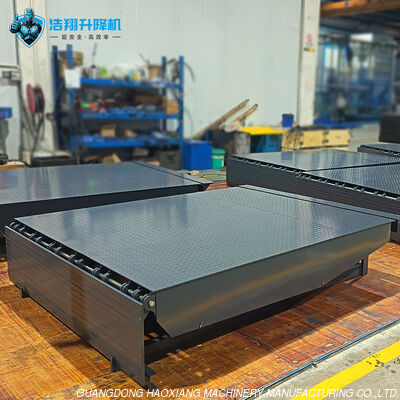

Product Images
