3Ton Hydraulic Guide Rail Cargo Lift for Warehouses

3Ton Hydraulic Guide Rail Cargo Lift for Warehouses
3Ton Hydraulic Guide Rail Cargo Lift for Warehouses 3Ton Hydraulic Guide Rail Cargo Lift for Warehouses

Large Image :  3Ton Hydraulic Guide Rail Cargo Lift for Warehouses

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: HAOXIANG BRAND
Certification: CE/ISO
Model Number: DSL 3-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD2300- USD6800 / UNIT
Packaging Details: nakes
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 1500 UNITS PER YEAR

3Ton Hydraulic Guide Rail Cargo Lift for Warehouses

Description
Product Name: Hydraulic Guide Rail Lift Country Of Origin: Made In China
Installation: Indoor/Outdoor Control Mode: Hydraulic
Floor Height: 1-7th Floor/Customizable Safety Features: Emergency Stop, Overload Protection, Safety Brake
Table Size: L2000mm×W2000mm,Customizable Application: Warehouse, Factory, Distribution Center
Material: Steel Stroke Height: 10m
Highlight:

3Ton hydraulic cargo lift

,

guide rail freight lift

,

warehouse platform lift

3Ton Electric Cargo Lift Warehouse Small Cargo Elevator Lift in China



Product key attributes

Parameter Specification
Product Name Hydraulic Guide Rail Lift
Stroke Height 10m
Type Cargo Lifts
Lifting Speed 0.1m/s
Power Supply AC 380V/50Hz



What is the Hydraulic Guide Rail Lift?

Commercial cargo lifts are specialized elevators designed exclusively for transporting goods. Our models have become a staple in various commercial settings, seamlessly facilitating vertical movement of items across floors in hotels, warehousing and logistics centers, automotive dealerships, and large supermarkets.



What truly sets our commercial cargo lifts apart is their exceptional customizability. We tailor every aspect to match your unique requirements: from adjusting voltage specifications and platform dimensions to fine-tuning lifting heights and weight capacities. Additionally, we offer flexible options for entry/exit orientations and can integrate safety guardrail doors for enhanced protection.



What are the Benefits of a Hydraulic Guide Rail Lift?

Whisper-Quiet, Seamless Movement
Equipped with an advanced hydraulic drive, this elevator glides with near-silent precision, ensuring minimal disruption to workspaces, warehouses, or adjacent areas. Its smooth motion eliminates jarring starts and stops, enhancing both operational comfort and environmental tranquility.



Effortless Operation
Featuring intuitive control panels and streamlined interfaces, this cargo lift requires little to no prior training. Staff can quickly master its functions, reducing onboarding time and keeping daily operations running without unnecessary delays.



Tailored to Your Needs
With a range of customizable dimensions, our hydraulic cargo elevator adapts perfectly to your space constraints and cargo specifications—whether you’re moving bulky machinery, palletized goods, or irregularly shaped items. We’ll adjust height, width, and weight capacity to match your exact requirements.



Built to Last
Constructed from premium-grade steel and heavy-duty components, this elevator is engineered to handle continuous, high-volume use. Its robust design resists wear and tear, lowering long-term maintenance demands and cutting down on repair costs over time.



Eco-Friendly Efficiency
The hydraulic system is fine-tuned to minimize energy usage, balancing powerful performance with reduced electricity consumption. This not only lowers utility bills but also aligns with sustainable business practices, making it a responsible choice for environmentally conscious operations.



Products model and parameter series of the Hydraulic Guide Rail lift.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model Rated load (kg) Lifting stroke (mm) Lowering height (mm) Table size (mm) Lifting time Motor power (kw)
DSL1-3 1000 3000 100 2000×1800 6m/min 3
DSL1-12 1000 12000 100 2500×2000 6m/min 3
DSL2-4 2000 4000 150 2000×1800 6m/min 4
DSL2-10 2000 10000 200 3000×3500 6m/min 4
DSL3-5 3000 5000 150 3000×1800 6m/min 5.5
DSL3-8 3000 8000 150 2000×1700 6m/min 5.5
DSL4-5 4000 5000 250 3000×4000 6m/min 7.5
DSL4-10 4000 10000 150 5000×3000 6m/min 7.5
DSL5-6 5000 6000 400 5800×3000 6m/min 11
DSL10-15 10000 15000 400 7000×5000 6m/min 18.5
DSL15-9 15000 9000 800 8000×4000 6m/min 30
DSL15-10 15000 10000 800 9000×4500 6m/min 30

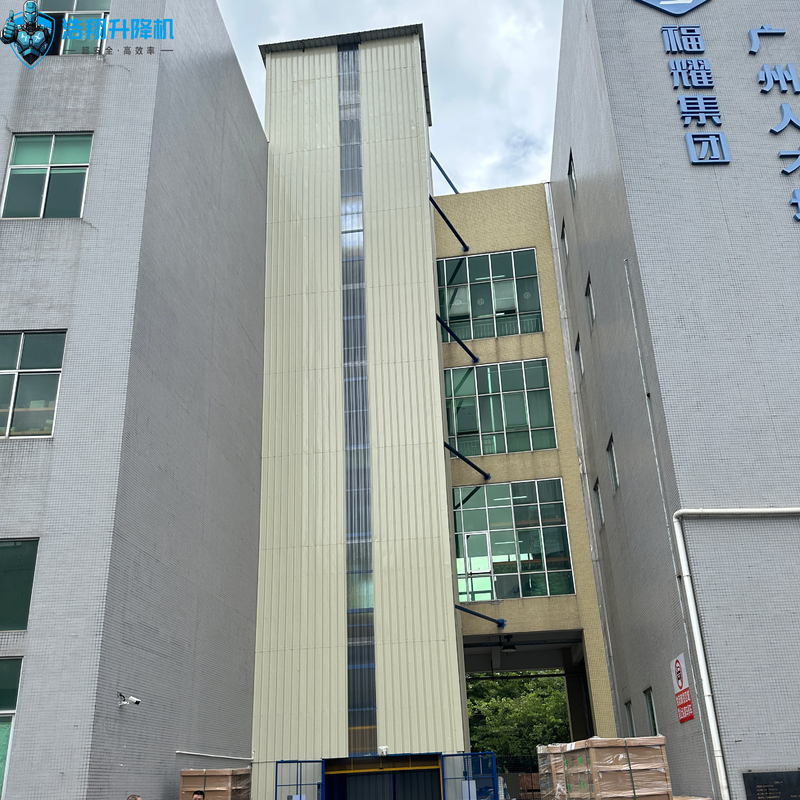

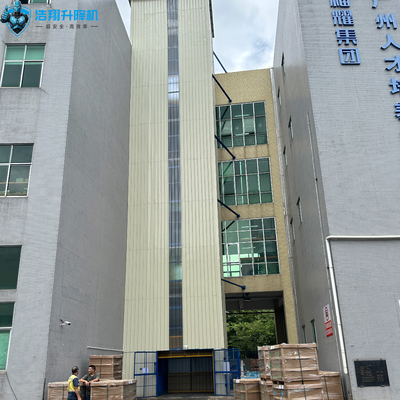

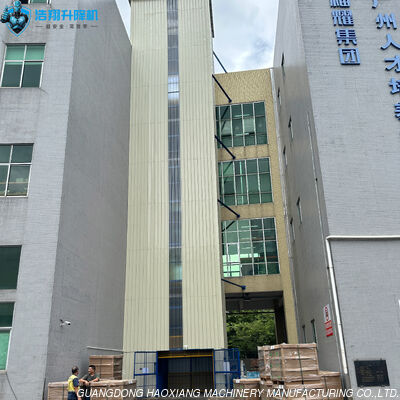

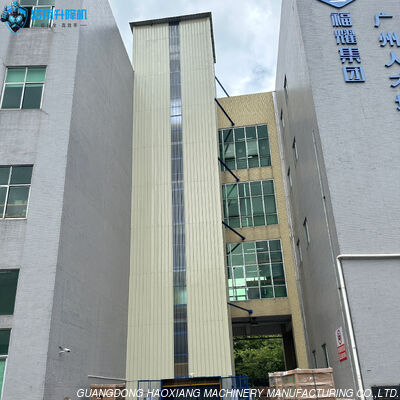

What does the Hydraulic Guide Rail lift look like?

3Ton Hydraulic Guide Rail Cargo Lift for Warehouses 0

3Ton Hydraulic Guide Rail Cargo Lift for Warehouses 1

3Ton Hydraulic Guide Rail Cargo Lift for Warehouses 2



What is the name of our company and where we are?

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility. Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.



Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide. We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.

3Ton Hydraulic Guide Rail Cargo Lift for Warehouses 3
3Ton Hydraulic Guide Rail Cargo Lift for Warehouses 4
