Hydraulic Heavy Loading Capacity Mobile Forklift Container Dock Yard Ramp with CE Certification
Product Key Attributes
| Parameter/Feature |
Specification Details |
| Length |
10M,customizable |
| Color |
Blue / Customizable |
| Ramp Angle |
12 Degrees |
| Paint Type |
Powder Coated |
| Origin |
China |
What is the Hydraulic Dock Ramp?
Designed as a forklift accessory, the mobile ramp provides height-adjustable connectivity between ground-level and vehicle cargo areas. Single-user operation enables swift bulk material handling, eliminating multiple-worker requirements. Companies achieve streamlined workflows, reduced operational costs, and enhanced throughput capacity.
What are the Benefits of the Hydraulic Dock Ramp?
Adjustable Length Hinge Mechanism
2-meter adjustable chains with self-locking hooks. Tension control system maintains 5cm constant clearance between equipment and vehicle.
Bridge Body Structure
Monocoque manganese steel frame rated for 6-ton SWL. Finite element analysis optimized cross-section reduces weight by 15% while maintaining strength.
Anti-skid Steel Netting
Diamond-patterned serrated steel with 0.8mm grit coating. Self-draining design prevents water accumulation, maintaining 0.6μ friction coefficient in wet conditions.
Safety Crack-Proof Valve
Dual-stage pressure relief system prevents hose rupture. Automatically vents excess pressure at 2500 psi, exceeding industry safety norms.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

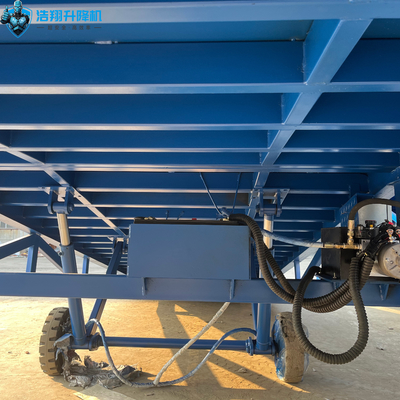

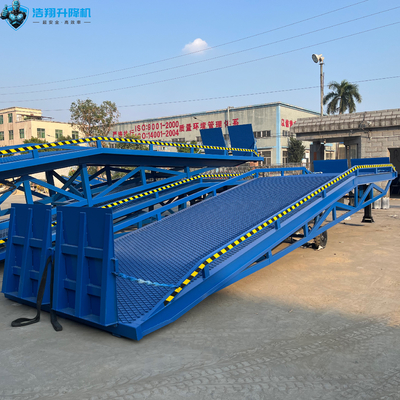

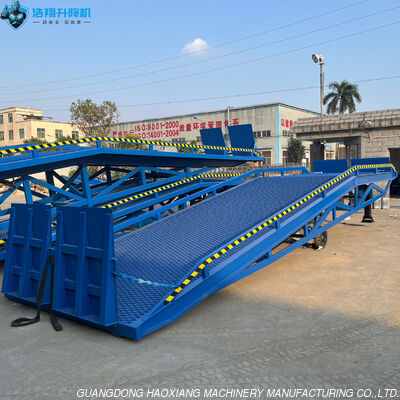

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
