Heavy Duty Stationary Telescopic Hydraulic Leveler Dock Loading Platform ODM

Large Image : Heavy Duty Stationary Telescopic Hydraulic Leveler Dock Loading Platform ODM

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×8

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	USD 1500-2000 /UNIT
Packaging Details:	NAKES
Delivery Time:	7-15 WORKING DAYS
Payment Terms:	T/T
Supply Ability:	5000 UNIT PER YEAR

Contact Now

Heavy Duty Stationary Telescopic Hydraulic Leveler Dock Loading Platform ODM

Description

Product Name:	Hydraulic Dock Leveler	Country Of Origin:	Made In China
Lip Board Thickness:	15mm Anti-slip Grooved Plate	Device Size:	W1980 × L1830× H495mm
Load:	6-20 Tons	Application:	Loading And Unloading Goods Between Trucks And Warehouse
Warranty:	12 Months	Certification:	CE/ISO
Articulated:	Open / Close	Power Supply:	220v/380v
Highlight:	Stationary Hydraulic Leveler , ODM Hydraulic Leveler , Stationary hydraulic loading dock leveler

Heavy Duty Stationary Telescopic Hydraulic Leveler Dock Loading Platform ODM

What is the Hydraulic Dock Leveler?
Future-Proofing Logistics Operations with Smart Dock Systems
In an era of 24/7 supply chain operations, enterprises require advanced docking infrastructure to maintain competitive edge. Modern hydraulic dock levelers have evolved into multifunctional hubs, streamlining warehouse-to-vehicle transitions and reducing dwell times by up to 40%.
Key advantages of our solution include:
Italian-made hydraulic components with 20,000-hour MTBF ratings
Contemporary design featuring LED safety lighting and anti-slip surfaces
Fail-safe operation with ISO 13849-1 certified safety circuits
Ultra-quiet operation (<60dB) suitable for noise-sensitive environments
Maintenance-free sealing technology preventing hydraulic leakage
User-centric interface with RFID-activated operation

What are the Benefits of the Hydraulic Dock Leveler?
HaoXiang Dock Leveler: Redefining Loading Dock Safety & Efficiency
Serving as a critical interface in modern factories, this equipment connects fixed platforms with mobile transport units, enabling unobstructed forklift movement and reducing loading times by 40%.

Technical Superiority:
Aggressive Anti-Slip Surface
6mm thick steel plate with 3D embossed diamond pattern
Passed 10,000-cycle abrasion testing with <5% pattern wear
World-Class Motor Solution
Nord gearmotor with IE4 super premium efficiency rating
55dB(A) operational noise at 1m distance
Vibration-damped mounting system
Precision-Engineered Grooves
Helical milling pattern optimized for electric fork truck tires
25% improvement in lateral stability during cornering
Sealed Hydraulic Actuators
Military-grade O-ring seals with Viton elastomers
10-year warranty against hydraulic fluid leakage

Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

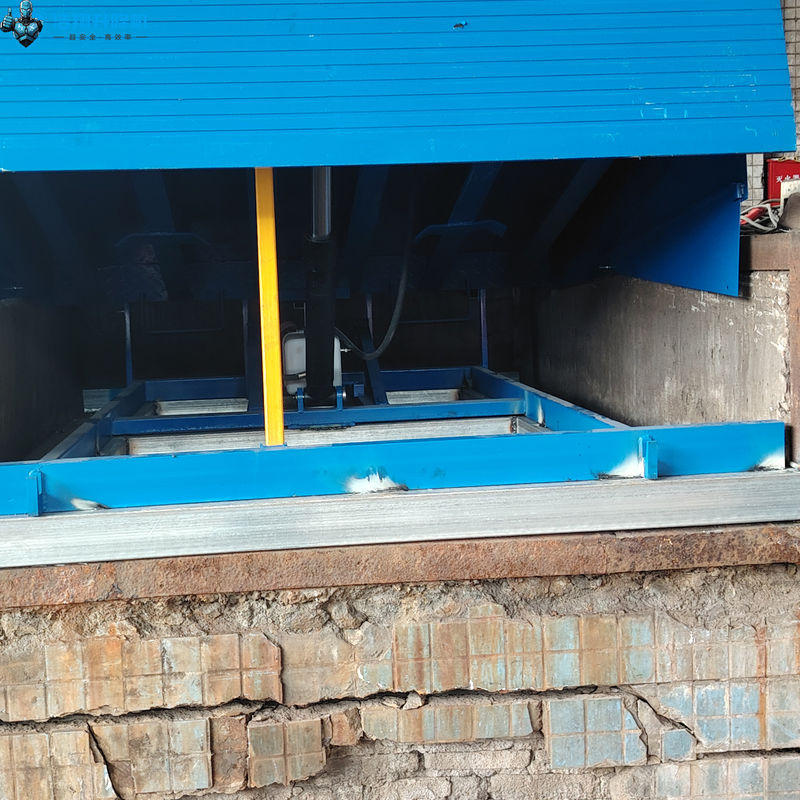

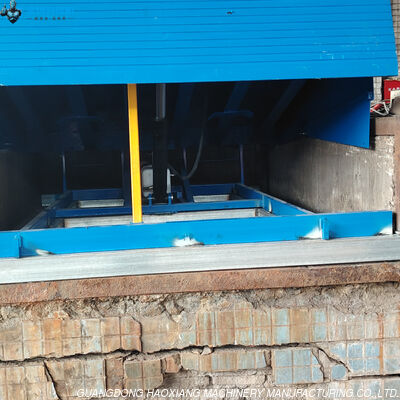

What does the Hydraulic Dock Leveler look like?
Heavy Duty Stationary Telescopic Hydraulic Leveler Dock Loading Platform ODM 0

What is the name of our company and where we are?

Haoxiang: Pioneering Hydraulic Lifting Solutions Since 2005
Strategically located in Zhongshan's manufacturing hub, our 21,500㎡ state-of-the-art facility produces industry-leading hydraulic equipment. As a government-recognized high-tech enterprise, we combine 30 million RMB capital strength with German-engineered precision.

Differentiators:

Product Portfolio: Full range of hydraulic lifts, dock levelers, and goods lifts
Technology: AI-powered predictive maintenance systems for equipment
Safety: Compliance with EN 1570 and ASME B30.1 standards
Capacity: 15,000 units/year production capacity with 89% automation rate
Service: 24/7 national support with 45 mobile service units
