Adjustable Hydraulic Loading Dock Ramps Lifts 6ton-15ton For Forklift Truck

Large Image : Adjustable Hydraulic Loading Dock Ramps Lifts 6ton-15ton For Forklift Truck

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×8

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	USD 1500-2000 /UNIT
Packaging Details:	NAKES
Delivery Time:	7-15 WORKING DAYS
Payment Terms:	T/T
Supply Ability:	5000 UNIT PER YEAR

Contact Now

Adjustable Hydraulic Loading Dock Ramps Lifts 6ton-15ton For Forklift Truck

Description

Product Name:	Hydraulic Dock Leveler	Country Of Origin:	Made In China
Operation Method:	Hydraulic	Lip Board Thickness:	15mm Anti-slip Grooved Plate
Device Size:	W1980 × L1830× H495mm	Power Source:	Electric
Certification:	CE/ISO	Articulated:	Open / Close
Working Lift:	More Than 20000times	Power Supply:	220v/380v
Highlight:	6ton hydraulic loading dock ramps , Forklift hydraulic loading dock ramps , 15ton hydraulic dock lifts

Adjustable Hydraulic Loading Dock Ramps Lifts 6ton-15ton For Forklift Truck

What is the Hydraulic Dock Leveler?
Optimizing Logistics Flow with Advanced Dock Levelers
Dock levelers serve as critical connectors in modern material handling operations, bridging the gap between stationary loading platforms and transport vehicles. Widely deployed in maritime terminals, railway hubs, and distribution centers, these devices utilize cutting-edge hydraulic systems to create seamless transitions for forklifts and pallet trucks.

Key Features:
Automatic Height Adjustment: Self-leveling mechanisms compensate for vertical discrepancies up to ±400mm
Smart Vehicle Interface: Laser-guided lip extension adapts to truck bed angles within 0.5° tolerance
Safety Integration: Anti-collision sensors and emergency stop protocols meet OSHA 1910.178 standards
Load Capacity: Rated for dynamic loads up to 20,000kg with 150% overload protection
Corrosion Resistance: 316L stainless steel construction with electro-polished finish

What are the Benefits of the Hydraulic Dock Leveler?
Type Variants
Hydraulic: Electro-hydraulic power units for heavy-duty applications (6-20T capacity)
Pneumatic: Air-powered systems for explosive environments
Mechanical: Spring-assisted manual operation for light-duty use (<5T capacity)
Construction
High-strength S355JR steel framework with hot-dip galvanized corrosion protection
8mm chequered deck plate with laser-cut anti-slip pattern (R13 rating per DIN 51130)
Load Capacity
Dynamic load ratings from 3,000kg to 20,000kg
Conforms to EN 1398 standard for loading bay equipment
Control Systems
Manual operation via mechanical release handles
Automatic control through PLC-integrated panels with HMI touchscreens

Safety Systems
Infrared safety curtains with 180° detection zones
Hydraulic velocity fuses preventing free-fall incidents
Adjustability
Vertical travel range: -300mm to +400mm
Automatic lip extension with 15° tilt compensation
Customization
Optional accessories: wheel guides, dock bumpers, and weather seals
Special coatings: food-grade epoxy or anti-static finishes

Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

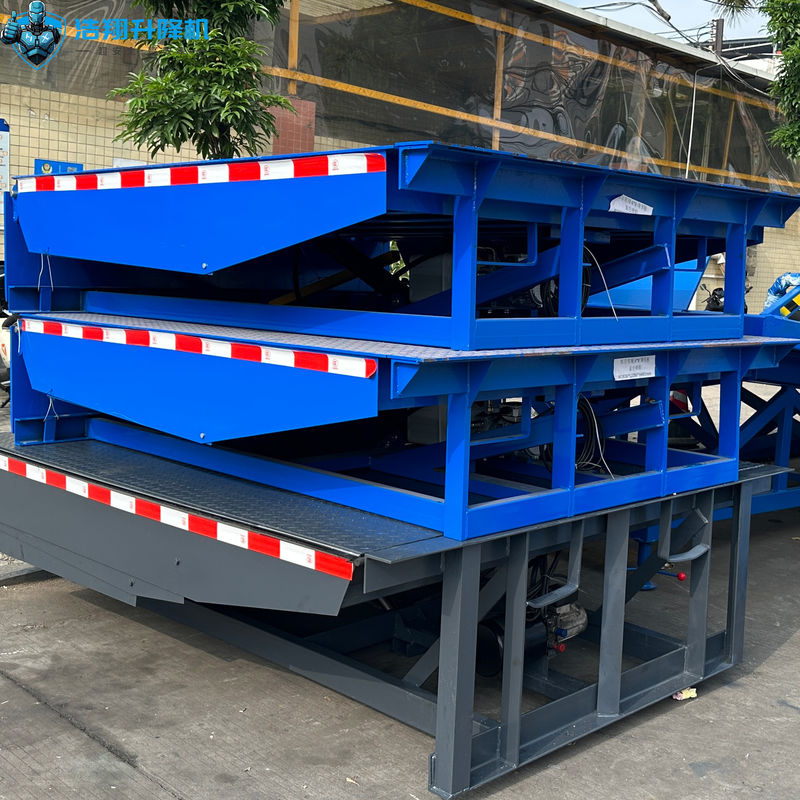

What does the Hydraulic Dock Leveler look like?
Adjustable Hydraulic Loading Dock Ramps Lifts 6ton-15ton For Forklift Truck 0

What is the name of our company and where we are?

Guangdong Haoxiang Machinery Manufacturing Co., Ltd.: Elevating Logistics Excellence
Headquartered in Xiaolan Town, Zhongshan City, Haoxiang specializes in hydraulic logistics solutions as a certified high-tech enterprise. With RMB 30 million in registered capital and a 21,500㎡ production facility, we achieve annual output exceeding RMB 100 million through advanced manufacturing capabilities.

Core Competencies:

Special Equipment Certification: Licensed manufacturer of Class II industrial equipment
Product Focus: Hydraulic lifting platforms engineered for "ultra-safety and efficiency"
Innovation: 12+ patents in load-bearing technology and smart control systems
Quality Assurance: ISO 9001:2015 certification with 99.8% OTD (On-Time Delivery)
Service Network: 45 professional installation teams providing 2-hour Pearl River Delta response

Market Reach:

40,000+ clients across logistics, manufacturing, and commercial sectors
Strategic partnerships with SF Express, JD Logistics, and Midea Group
Export markets spanning 23 countries in Southeast Asia and the Middle East
