What is the Hydraulic Dock Leveler?
Dock levelers are widely used in docksStations and warehouses. Its main function is to put up a bridge between cargo platform and vehicles. The first-class hydraulic technology increases the efficiency and safety in loading or unloading goods. A section of the equipment is in cargo platform, and the other is connecting with vehicles, and can adjusting automatically the height according to the height of different vehicles.
What are the Benefits of the Hydraulic Dock Leveler?
Simple structure, easy to customize, easy to produce
Installation conditions are not complicated, after retail
Using special steel plate, the product is durable and not deformed
The surface of the product is painted, not easy to rust
Product design is humanized to ensure personnel safety
Electric switch, the operation is very convenient
The bearing tonnage can be customized, which can save customers' costs
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

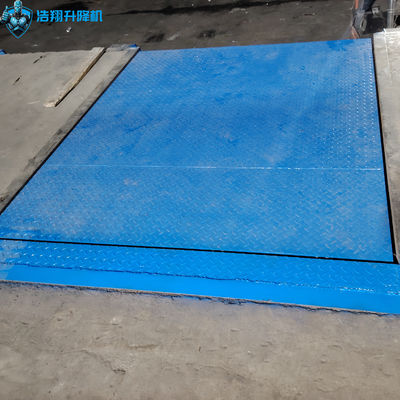

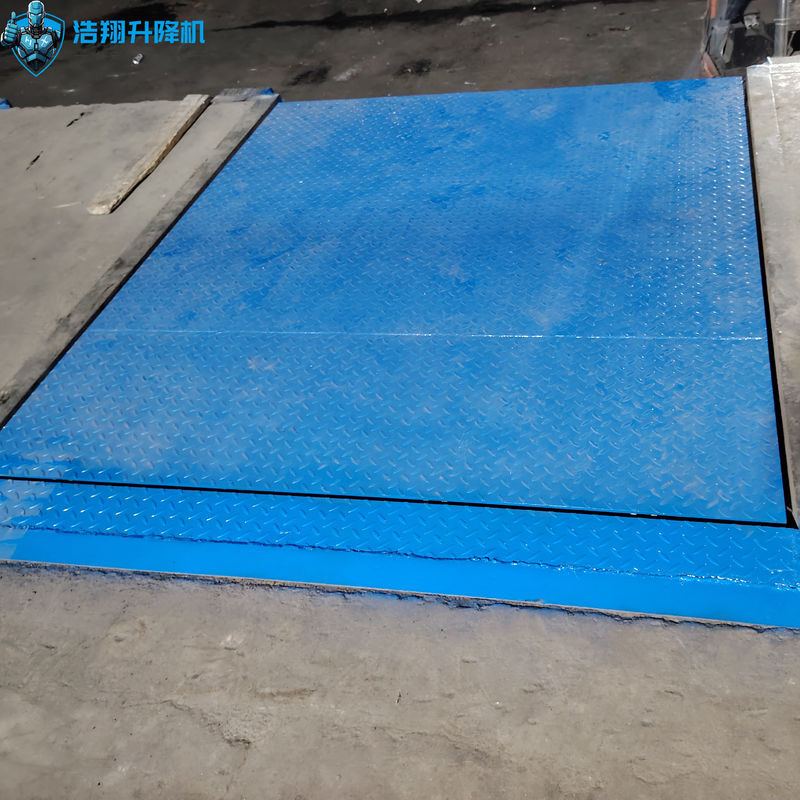

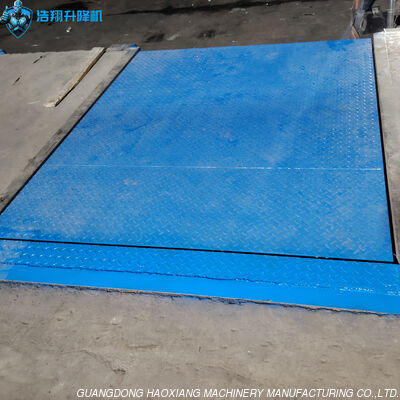

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd.: Elevating Logistics Excellence
Headquartered in Xiaolan Town, Zhongshan City, Haoxiang specializes in hydraulic logistics solutions as a certified high-tech enterprise. With RMB 30 million in registered capital and a 21,500㎡ production facility, we achieve annual output exceeding RMB 100 million through advanced manufacturing capabilities.
Core Competencies:
Special Equipment Certification: Licensed manufacturer of Class II industrial equipment
Product Focus: Hydraulic lifting platforms engineered for "ultra-safety and efficiency"
Innovation: 12+ patents in load-bearing technology and smart control systems
Quality Assurance: ISO 9001:2015 certification with 99.8% OTD (On-Time Delivery)
Service Network: 45 professional installation teams providing 2-hour Pearl River Delta response
Market Reach:
40,000+ clients across logistics, manufacturing, and commercial sectors
Strategic partnerships with SF Express, JD Logistics, and Midea Group
Export markets spanning 23 countries in Southeast Asia and the Middle East
