Forklift Truck Container Ramps 10 Ton 10 MMobile Loading Yard Ramp with Adjustable Height Legs
Product key attributes
| Parameter/Feature |
Specification Details |
| Lift Drive / Actuation |
Hydraulic |
| Table Size |
1800*2100mm |
| Application |
Widely |
| Color |
Customers' Requirements |
| After-sales Service... |
Online Support |
| Certification |
CE/ISO |
| Lift Mechanism |
Telescoping Lift |
| Video outgoing |
Provided |
| Core Components |
Pressure vessel, Motor, Bearing, Gear, Pump,... |
What is the Hydraulic Dock Ramp?
The Hydraulic Dock Ramp serves as an auxiliary device for loading and unloading goods in conjunction with forklifts. Its height can be adjusted to match the height of the truck compartment, allowing forklifts to drive directly into the compartment for efficient batch loading and unloading. This process requires only one operator, enabling rapid cargo handling. By utilizing this equipment, enterprises can significantly reduce labor costs, enhance work efficiency, and achieve greater economic benefits.
The ramp deck features a special diamond-shaped grid plate, which offers reliable strength and ensures long-term use without deformation. Its diamond mesh structure provides excellent anti-slip performance, enhancing the forklift's gradeability and maneuverability. Even in rainy or snowy conditions, normal operation is guaranteed.
Equipped with an adjustable-length cable chain, the ramp can be easily secured to the truck, ensuring a close and stable connection between the dock ramp and the truck at all times.
Powered by a manual hydraulic pump, the height adjustment of the dock ramp can be easily accomplished without the need for an external power supply.
The included truck separation pad effectively prevents the dock ramp from shifting during truck loading and unloading operations.
What are the Benefits of the Hydraulic Dock Ramp?
Smooth and Accurate Height Adjustment
Featuring a cutting-edge hydraulic system and a manual pump, our Hydraulic Dock Ramp delivers precise and smooth height adjustment, effortlessly matching the heights of diverse trucks and containers, ranging from 1.2 to 1.68 meters.
Robust and Long-Lasting Construction
Fabricated from superior quality steel and reinforced with a robust steel beam frame, our Hydraulic Dock Ramp ensures exceptional strength, stability, and load-bearing capacity, capable of supporting rated loads from 10 to 20 tons.
Comprehensive Safety Features
Our Hydraulic Dock Ramp prioritizes safety with a comprehensive suite of features, including guardrails, safety chains, and a dual brake lock system, ensuring secure operation and minimizing the potential for accidents.
Resilient and Aesthetic Finish
Our Hydraulic Dock Ramp features a powder-coated finish that enhances its appearance while providing superior protection against rust and corrosion, ensuring a long service life.
Tailored Configuration Options
Our Hydraulic Dock Ramp offers flexible customization options, allowing you to adjust the length (up to 20 meters), choose colors, and select panel styles, including diamond mesh, to perfectly suit your operational environment.
Adaptability to Various Settings
Our Hydraulic Dock Ramp is adaptable to various environments, such as warehouses, factories, distribution centers, and logistics hubs, facilitating efficient and smooth loading and unloading processes.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

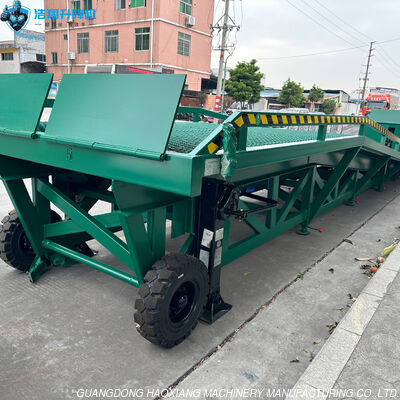

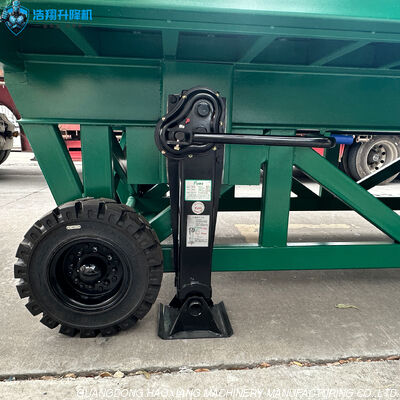

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
