Custom Steel Portable Forklift Dock Ramp Hydraulic10-20T Capacity 1.2-1.68m Lift Guardrails
Product key attributes
| Parameter/Feature |
Specification Details |
| Condition |
New |
| Place of Origin |
Guangdong, China |
| Applicable Industries |
hotels, Garment Shops, Building Material Shop... |
| Load capacity |
8000 |
| Control |
Digital Control Panel |
| Voltage |
Local Voltage |
| Showroom Location |
Canada, Turkey, United Kingdom, Italy, France... |
| Machinery Test Report |
Provided |
| Warranty of core... |
1 Year |
What is the Hydraulic Dock Ramp?
The Hydraulic Dock Ramp is an auxiliary equipment for loading and unloading goods used in conjunction with forklifts. The height can be adjusted according to the height of the car compartment. The forklift can directly drive into the interior of the compartment through this equipment for batch loading and unloading of goods. It only needs one person to work. Fast loading and unloading of goods. It enables enterprises to reduce a large amount of labor, improve work efficiency, and obtain greater economic benefits.
·The countertop adopts a special diamond-shaped grid plate, which has reliable strength and can ensure long-term use without deformation. Its diamond-shaped mesh structure fully guarantees excellent anti-skid performance, making the forklift have better gradeability and maneuverability. Even in rainy and snowy weather, normal use is still guaranteed.
.The length-adjustable cable chain can easily hook the truck, so that the boarding bridge and the truck are always closely attached.
The hand hydraulic pump is used as power, and the height adjustment of the boarding bridge can be easily realized without external power supply.
The configured car stripping pad can effectively prevent the boarding bridge from shifting when the truck is loaded and unloaded.
What are the Benefits of the Hydraulic Dock Ramp?
Smooth and Accurate Height Adjustment
With its sophisticated hydraulic system and manual pump, our Hydraulic Dock Ramp provides effortless and accurate height adjustment, seamlessly adapting to different truck and container heights between 1.2 and 1.68 meters.
Robust and Long-Lasting Construction
Built from premium steel and featuring a reinforced steel beam structure, our Hydraulic Dock Ramp guarantees outstanding strength, stability, and weight-bearing capacity, supporting loads ranging from 10 to 20 tons.
Comprehensive Safety Features
Ensuring safe operation, our Hydraulic Dock Ramp is equipped with a full range of safety measures, such as durable guardrails, safety chains, and a dual brake lock system, minimizing accident risks.
Resilient and Aesthetic Finish
Finished with a powder coating, our Hydraulic Dock Ramp not only looks aesthetically pleasing but also resists rust and corrosion effectively, guaranteeing a prolonged lifespan.
Tailored Configuration Options
Tailor our Hydraulic Dock Ramp to your specific needs with customizable length (up to 20 meters), color options, and panel types, such as diamond mesh or alternative designs.
Adaptability to Various Settings
Ideal for warehouses, factories, distribution centers, and logistics hubs, our Hydraulic Dock Ramp is designed to streamline efficient loading and unloading operations in diverse settings.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

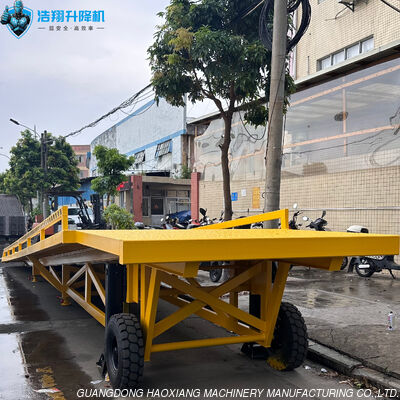

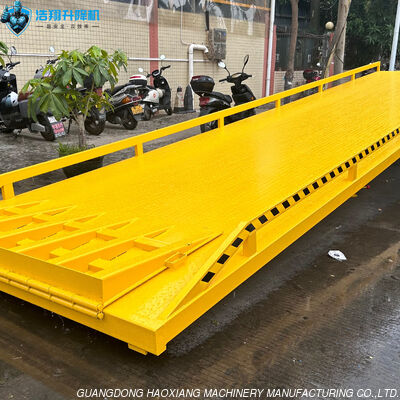

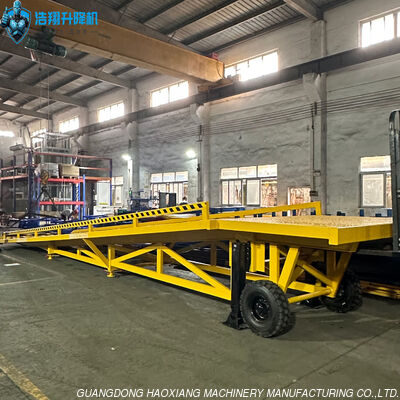

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
