Hydraulic Dock Ramp 10-20 Ton Adjustable Height 1.2-1.68M Heavy Duty Steel Construction with Guardrails Safety Chain Dual Brake Custom Length Color
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Hydraulic Dock Ramp |
| Country of Origin |
China (Made in China) |
| Color |
Purple,Customizable |
| Frame Structure |
Reinforced Steel Beams |
| Stroke Height |
1.2-1.68 Meters |
| Type |
Full-length/Segmented |
| Usage |
Loading and unloading goods from trucks or containers |
| Material |
High Strength Steel |
| Application |
Widely |
| Hydraulic System(Hydraulic) |
Manual Pump |
What is the Hydraulic Dock Ramp?
Designed for the modern warehouse and logistics center, the Hydraulic Dock Ramp is a special auxiliary equipment used for loading and unloading of goods.Its height can be adjusted with the different heights of lorries.Some transport vehicles like forks can directly move into the wagon box with goods in using it, and only need one person for operating. The equipment can help enterprise reduce so much labor force,improve work efficiency and speed up the rate of goods flow, so as to achieve greater economic results.
Hydraulic Loading Unloading Dock Leveler Lift container loading ramp loading platform is an optimal solution, which provide the pick-and-place operation and ensure fast loading and unloading. When activated, the leveler is lifted and the lip opens while turning. Next, the platform is lowered until it reaches the floor of the vehicle body. The system is ready for operation. After the work is completed the leveler is lifted, the lip lowers and takes a vertical position, then the platform is returned its original position. Installation can be carried out by both, embedded and suspended installing
What are the Benefits of the Hydraulic Dock Ramp?
Smooth and Accurate Height Adjustment
Our Hydraulic Dock Ramp ensures smooth and precise height adjustment, effortlessly accommodating various truck and container heights from 1.2 to 1.68 meters, thanks to its advanced hydraulic system and manual pump.
Robust and Long-Lasting Construction
Constructed from high-grade steel and reinforced with a robust steel beam frame, our Hydraulic Dock Ramp offers exceptional durability, stability, and load-bearing capacity, capable of supporting rated loads from 10 to 20 tons.
Comprehensive Safety Features
For secure operation, our Hydraulic Dock Ramp incorporates a comprehensive set of safety features, including guardrails, safety chains, and a dual brake lock system, significantly reducing the risk of accidents.
Resilient and Aesthetic Finish
The powder-coated surface of our Hydraulic Dock Ramp not only enhances its visual appeal but also provides excellent resistance to rust and corrosion, ensuring a long service life.
Tailored Configuration Options
Our Hydraulic Dock Ramp can be customized to perfectly fit your operational requirements, offering adjustable length (up to 20 meters), color choices, and panel styles, including diamond mesh options.
Adaptability to Various Settings
Suitable for a wide range of environments, including warehouses, factories, distribution centers, and logistics hubs, our Hydraulic Dock Ramp facilitates efficient and seamless loading and unloading operations.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

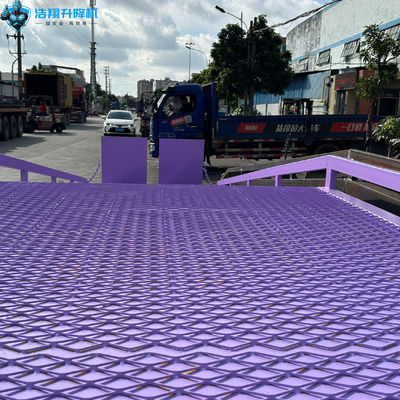

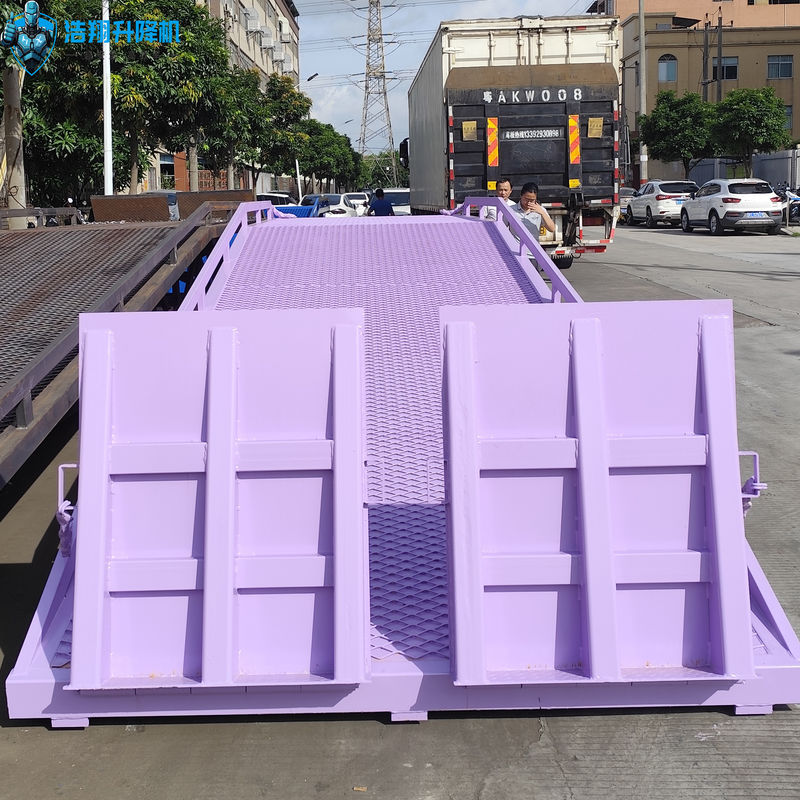

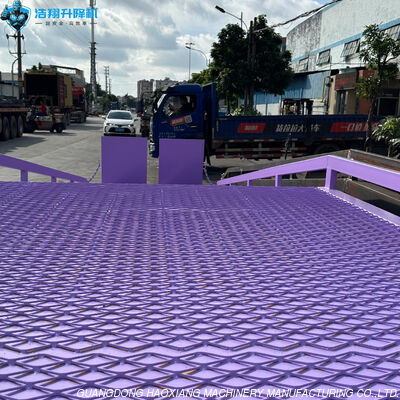

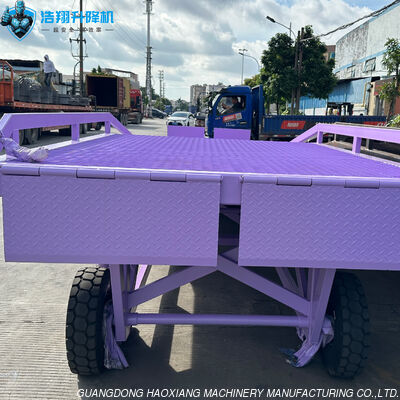

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
