Black Loading And Unloading Goods From Trucks Or Containers Manual Dock Ramp 10T-10M
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Hydraulic Dock Ramp |
| Country of Origin |
China (Made in China) |
| Color |
Black,Customizable |
| Frame Structure |
Reinforced Steel Beams |
| Stroke Height |
1.2-1.68 Meters |
| Type |
Full-length/Segmented |
| Usage |
Loading and unloading goods from trucks or containers |
| Hydraulic System(Hydraulic) |
Manual Pump |
What is the Hydraulic Dock Ramp?
The Hydraulic Dock Ramp is a state-of-the-art loading and unloading solution engineered for the requirements of today's warehouses and logistics facilities. Equipped with an advanced hydraulic system and a manual pump, it delivers accurate and smooth height adjustment, seamlessly transitioning from 1.2 to 1.68 meters to perfectly align with different truck and container heights. Constructed from premium quality steel and reinforced with a robust steel beam frame, it ensures exceptional strength, stability, and load-bearing capacity, supporting rated loads from 10 to 20 tons, which can be customized to your exact specifications.
Safety is a core consideration in our Hydraulic Dock Ramp. It incorporates a comprehensive set of safety measures, including durable guardrails and safety chains to prevent accidents. The dual brake lock system further enhances safety by providing reliable wheel braking, ensuring stable operation at all times. The ramp is finished with a powder-coated surface, which not only enhances its visual appeal but also provides excellent resistance to rust and corrosion, thereby maximizing its lifespan.
Suitable for a wide range of applications, including warehouses, factories, distribution centers, and logistics hubs, our Hydraulic Dock Ramp is primarily designed for the efficient loading and unloading of goods from trucks and containers. Its 12-degree ramp angle is optimized for smooth and efficient cargo handling. The ramp length can be customized up to 20 meters, and it is available in green or other customizable colors, as well as diamond mesh or alternative customizable panel options, to cater to various operational scenarios.
What are the Benefits of the Hydraulic Dock Ramp?
Precise Elevation Control
With its advanced hydraulic system and manual pump, our Hydraulic Dock Ramp offers seamless and accurate height adjustment from 1.2 to 1.68 meters, ensuring compatibility with a wide range of truck and container heights.
Rugged and Dependable Build
Constructed from premium steel and featuring a reinforced steel beam structure, this ramp provides exceptional strength, stability, and load-bearing capacity, supporting loads from 10 to 20 tons.
Enhanced Safety Measures
Comprehensive safety features, including guardrails, safety chains, and a dual brake lock system, are incorporated to ensure secure operation and minimize the risk of accidents.
Durable and Protective Coating
The powder-coated finish not only enhances the ramp's visual appeal but also provides excellent resistance to rust and corrosion, extending its service life.
Customizable to Suit Your Needs
Adapt the ramp to your specific operational environment with customizable length (up to 20 meters), color options, and panel types, including diamond mesh or other styles.
Versatile Application
Ideal for warehouses, factories, distribution centers, and logistics hubs, our Hydraulic Dock Ramp facilitates efficient and smooth loading and unloading of goods in various settings.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

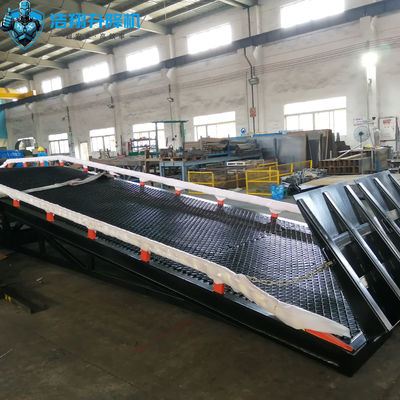

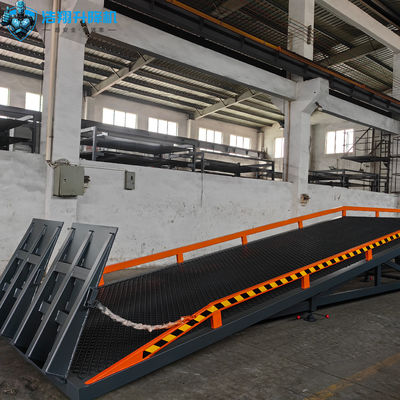

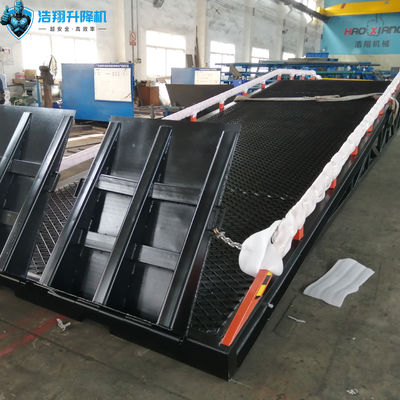

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
