Customied Yellow Heavy Duty 10-20T Hydraulic Loading Ramp Steel 10M Portable Forklift Ramp
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Hydraulic Dock Ramp |
| Country of Origin |
China (Made in China) |
| Color |
Yellow,Customizable |
| Platform Width |
2.2 Meters |
| Stroke Height |
1.2-1.68 Meters |
| Usage |
Loading and unloading goods from trucks or containers |
| Frame Structure |
Guardrail,Safety Chain |
| Ramp Angle |
Reinforced Steel Beams |
| Surface Treatment |
Anti-Rust Paint |
What is the Hydraulic Dock Ramp?
The Hydraulic Dock Ramp is a sophisticated loading and unloading solution engineered for the needs of today's warehouses and logistics centers. Integrating an advanced hydraulic system with a manual pump, it delivers precise height adjustability, smoothly transitioning from 1.2 to 1.68 meters to perfectly align with varying truck and container heights. Fabricated from superior quality steel and reinforced with a robust steel beam frame, it ensures exceptional strength, stability, and load-bearing capacity, supporting rated loads from 10 to 20 tons, which can be customized to your precise specifications.
Safety is integrated into every aspect of our Hydraulic Dock Ramp. It includes a comprehensive set of safety features, such as durable guardrails and safety chains to prevent accidents. The dual brake lock system further enhances safety by providing reliable wheel braking, ensuring stable operation at all times. The ramp is finished with a powder-coated surface, which not only enhances its aesthetic appeal but also provides excellent resistance to rust and corrosion, thereby maximizing its lifespan.
Suitable for a wide range of applications, including warehouses, factories, distribution centers, and logistics hubs, our Hydraulic Dock Ramp is primarily designed for the efficient loading and unloading of goods from trucks and containers. Its 12-degree ramp angle is optimized for smooth and efficient cargo handling. The ramp length can be customized up to 20 meters, and it is available in green or other customizable colors, as well as diamond mesh or alternative customizable panel options, to cater to various operational scenarios.
What are the Benefits of the Hydraulic Dock Ramp?
Accurate Elevation Control
Featuring a cutting-edge hydraulic system and a manual pump, our Hydraulic Dock Ramp provides smooth and precise height adjustment from 1.2 to 1.68 meters, seamlessly matching the heights of diverse trucks and containers.
Sturdy Build
Built from premium steel and reinforced with a robust steel beam framework, this ramp delivers exceptional strength, stability, and weight-bearing capacity, capable of supporting loads ranging from 10 to 20 tons.
Advanced Safety Measures
A comprehensive suite of safety features, including guardrails, safety chains, and a dual brake locking mechanism, guarantees secure operation and significantly reduces the risk of accidents.
Long-Lasting Coating
The powder-coated finish not only improves the ramp's visual appeal but also provides excellent resistance to rust and corrosion, ensuring a prolonged service life.
Tailored to Your Needs
Customize the ramp to perfectly fit your operational requirements with adjustable length (up to 20 meters), color choices, and panel styles, including diamond mesh options.
Adaptable for Various Settings
Suitable for a wide range of environments, including warehouses, factories, distribution centers, and logistics hubs, our Hydraulic Dock Ramp facilitates efficient and smooth loading and unloading of goods.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

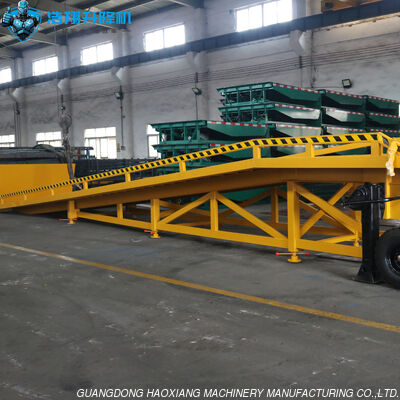

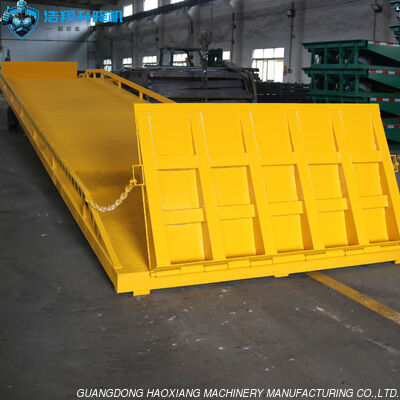

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
