Non-ustomizable Blue Industrial Grade Steel Hydraulic Dock Ramp (10M) 10-20T Capacity 1.2-1.68M Height With Guardrails
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Hydraulic Dock Ramp |
| Country of Origin |
China (Made in China) |
| Color |
Customizable |
| Control Mode |
Hydraulic |
| Stroke Height |
1.2-1.68 Meters |
| Usage |
Loading and unloading goods from trucks or containers |
| Safety Device |
Guardrail,Safety Chain |
| Ramp Angle |
12 Degrees |
| Panel |
Diamond Mesh,customizable |
What is the Hydraulic Dock Ramp?
For modern warehouses and logistics operations, our Hydraulic Dock Ramp offers a state-of-the-art solution for loading and unloading. Powered by an advanced hydraulic system and a manual pump, it provides accurate height adjustment between 1.2 and 1.68 meters, effortlessly matching the height of different trucks and containers. Constructed from high-grade steel and featuring a reinforced steel beam structure, this ramp guarantees outstanding durability and load-bearing performance, with a rated load capacity ranging from 10 to 20 tons, and the flexibility to be tailored to your specific needs.
When it comes to safety, our Hydraulic Dock Ramp leaves nothing to chance. It is equipped with a full range of safety features, such as strong guardrails and safety chains to minimize the risk of accidents. The dual brake lock system adds another layer of safety by providing reliable wheel braking during operation. Finished with a powder coating, the ramp not only looks good but also resists rust and corrosion effectively, ensuring a longer service life.
Ideal for a variety of settings including warehouses, factories, distribution centers, and logistics centers, our Hydraulic Dock Ramp is primarily used for the efficient handling of goods during loading and unloading from trucks and containers. Its 12-degree incline is designed for smooth and efficient cargo flow. The ramp can be customized in length up to 20 meters, and offers a choice of colors including green or custom options, as well as panel types like diamond mesh or alternatives, to meet diverse operational needs.
What are the Benefits of the Hydraulic Dock Ramp?
Precise Height Adjustment
Equipped with an advanced hydraulic system and manual pump, our Hydraulic Dock Ramp offers seamless height adjustment from 1.2 to 1.68 meters, ensuring compatibility with various truck and container heights.
Robust Construction
Constructed from high-quality steel with a reinforced steel beam frame, this ramp provides exceptional durability, stability, and load-bearing capacity, supporting rated loads from 10 to 20 tons.
Enhanced Safety Features
Comprehensive safety measures, including guardrails, safety chains, and a dual brake lock system, ensure secure operation and minimize the risk of accidents.
Durable Finish
The powder-coated surface not only enhances the ramp's appearance but also provides superior resistance to rust and corrosion, extending its service life.
Customizable Options
Tailor the ramp to your specific needs with customizable length (up to 20 meters), color, and panel type (including diamond mesh), ensuring it fits seamlessly into your operational environment.
Versatile Application
Ideal for a wide range of settings, including warehouses, factories, distribution centers, and logistics hubs, facilitating efficient loading and unloading of goods.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

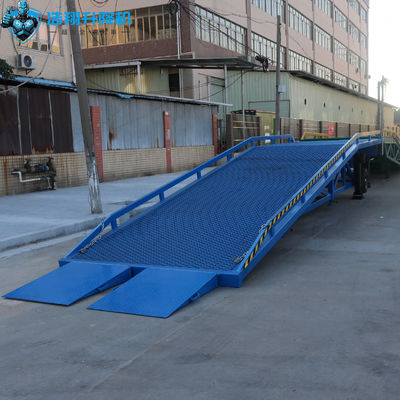

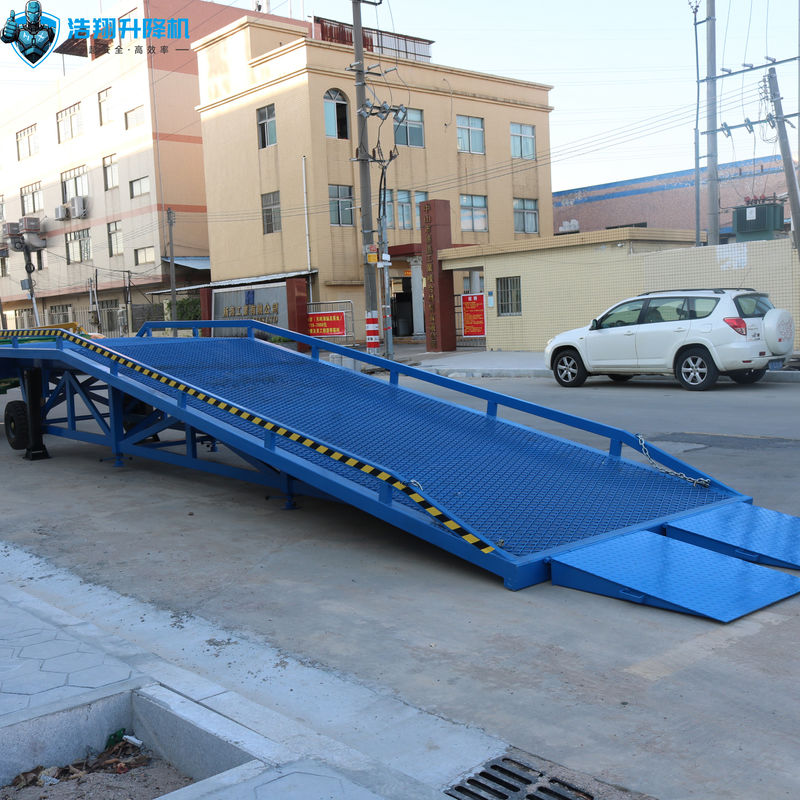

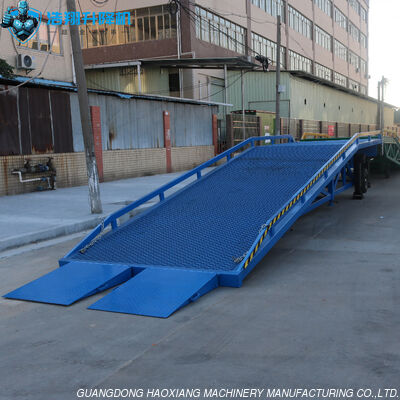

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
