Non-ustomizable Blue Industrial Steel Dock Ramp (10M) Manual 10-20T Capacity 1.2-1.68M Height Guardrails Brakes
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Manual dock ramp |
| Country of Origin |
China (Made in China) |
| Color |
Blue,Customizable
|
| Control Mode |
Manual |
| Stroke Height |
1.2-1.68 Meters |
| Platform Width |
2.2 Meters |
| Frame Structure |
Reinforced Steel Beams |
| Warranty |
12Months |
| Panel |
Diamond Mesh,customizable |
| Application |
Warehouse, Factory, Distribution Center |
What is the Manual Dock Ramp?
For businesses prioritizing budget-friendly equipment solutions and simplified maintenance, our Manual Dock Ramp offers an ideal loading and unloading option. Built to last with high-grade steel and a strengthened steel beam structure, this ramp delivers remarkable resilience and can support loads ranging from 10 to 20 tons, with customization available.
Operating manually, this ramp provides lifting capability without the need for a hydraulic system, resulting in reduced equipment costs and less maintenance compared to hydraulic models. Safety is not compromised, as it includes guardrails, safety chains, and a dual brake lock system for worry-free operation.
Protected by a rust-inhibiting paint finish, the Manual Dock Ramp is well-suited for challenging environments. Tailor the ramp to your needs with adjustable length (up to 20 meters), color choices, and panel types. Its 12-degree slope is designed for smooth and productive cargo handling.
Suitable for warehouses, factories, distribution centers, and logistics operations, our Manual Dock Ramp is a trustworthy partner for efficient loading and unloading. It combines economic efficiency, ease of use, and safety to deliver a practical cargo handling solution.
What are the Benefits of the Manual Dock Ramp?
Cost-Effective Solution
Our Manual Dock Ramp offers a budget-friendly alternative without compromising on quality or performance, making it an excellent choice for cost-conscious operations.
User-Friendly Operation
Despite lacking a hydraulic system, this ramp provides reliable lifting functionality through manual operation, simplifying maintenance and reducing complexity.
Sturdy and Durable
Built with the same high-quality steel and reinforced frame structure as its hydraulic counterpart, the Manual Dock Ramp ensures long-lasting performance and stability.
Comprehensive Safety
Equipped with guardrails, safety chains, and a dual brake lock system, this ramp prioritizes operator safety, mirroring the safety standards of more advanced models.
Resistant Surface Treatment
A rust-resistant paint finish protects the ramp from harsh environmental conditions, ensuring its longevity even in challenging settings.
Flexible Customization
Customize the ramp's length, color, and panel type to align with your specific requirements and preferences, enhancing its suitability for diverse applications.
Products model and parameter series of the Manual Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQY10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQY12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQY15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQY20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQY10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

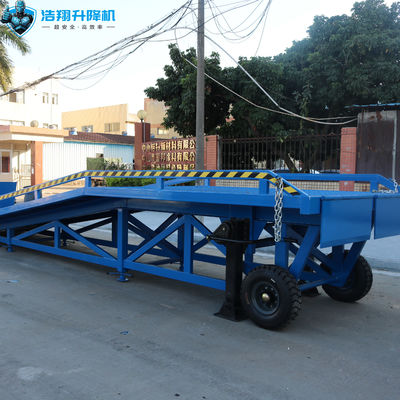

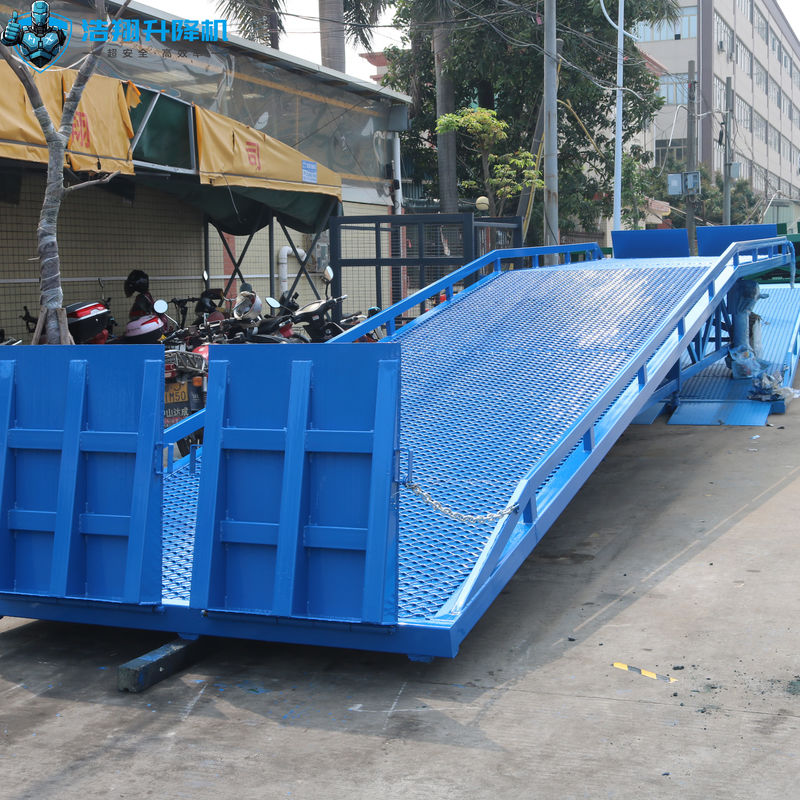

What does the Manual Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
