Customizable Green Industrial Steel Dock Ramp (10M) Hydraulic 10-20T Capacity 1.2-1.68M Height Guardrails Brakes
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Hydraulic Dock Ramp |
| Country of Origin |
China (Made in China) |
| Color |
Customizable |
| Control Mode |
Hydraulic |
| Stroke Height |
1.2-1.68 Meters |
| Usage |
Loading and unloading goods from trucks or containers |
| Safety Device |
Guardrail,Safety Chain |
| Ramp Angle |
12 Degrees |
| Panel |
Diamond Mesh,customizable |
What is the Hydraulic Dock Ramp?
Our Hydraulic Dock Ramp represents the forefront of loading and unloading technology, tailored for the demands of contemporary warehouses and logistics facilities. Featuring a sophisticated hydraulic system and a manual pump, this ramp enables precise height control, adjusting smoothly from 1.2 to 1.68 meters to accommodate diverse truck and container bed heights. Built from premium steel and reinforced with a robust steel beam frame, it delivers exceptional strength and stability, supporting load capacities from 10 to 20 tons, which can be customized to your exact requirements.
Safety is a top priority with our Hydraulic Dock Ramp. It incorporates a comprehensive suite of safety features, including robust guardrails and safety chains to avert accidents. Furthermore, the dual brake lock system delivers dependable wheel braking, ensuring stable operation. The ramp is finished with a powder-coated surface, enhancing its visual appeal while providing superior resistance to rust and corrosion, thereby extending its operational life.
Versatile in application, our Hydraulic Dock Ramp is suitable for a wide range of environments, including warehouses, factories, distribution centers, and logistics hubs. It is primarily designed for the efficient loading and unloading of goods from trucks and containers. Its 12-degree ramp angle is engineered for smooth and efficient cargo movement. The ramp length can be customized up to 20 meters, and it is available in a green finish or other customizable colors, as well as diamond mesh or alternative customizable panel styles, to suit various operational requirements.
What are the Benefits of the Hydraulic Dock Ramp?
Precise Height Adjustment
Equipped with an advanced hydraulic system and manual pump, our Hydraulic Dock Ramp offers seamless height adjustment from 1.2 to 1.68 meters, ensuring compatibility with various truck and container heights.
Robust Construction
Constructed from high-quality steel with a reinforced steel beam frame, this ramp provides exceptional durability, stability, and load-bearing capacity, supporting rated loads from 10 to 20 tons.
Enhanced Safety Features
Comprehensive safety measures, including guardrails, safety chains, and a dual brake lock system, ensure secure operation and minimize the risk of accidents.
Durable Finish
The powder-coated surface not only enhances the ramp's appearance but also provides superior resistance to rust and corrosion, extending its service life.
Customizable Options
Tailor the ramp to your specific needs with customizable length (up to 20 meters), color, and panel type (including diamond mesh), ensuring it fits seamlessly into your operational environment.
Versatile Application
Ideal for a wide range of settings, including warehouses, factories, distribution centers, and logistics hubs, facilitating efficient loading and unloading of goods.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

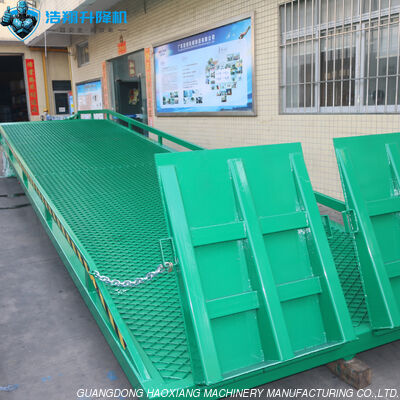

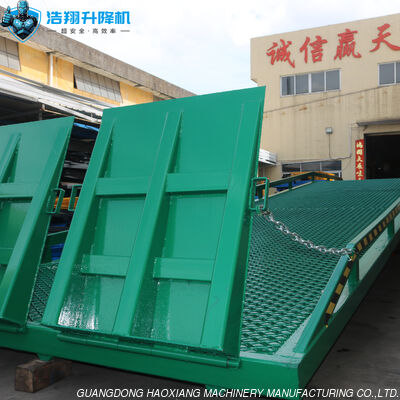

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility. Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.
Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide. We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
