Heavy Duty Hydraulic Dock Ramp 10-20T 1.2-1.68M Lift Height 10M Custom Steel Frame With Anti-Rust
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Hydraulic Dock Ramp |
| Country of Origin |
China (Made in China) |
| Color |
Customizable |
| Control Mode |
Hydraulic |
| Stroke Height |
1.2-1.68 Meters |
| Surface Treatment |
Anti-Rust Paint |
What is the Hydraulic Dock Ramp?
Our Hydraulic Dock Ramp is a cutting-edge loading and unloading solution designed for modern warehouses and logistics centers. Equipped with an advanced hydraulic system and a manual pump, this ramp offers precise height adjustment ranging from 1.2 to 1.68 meters, seamlessly adapting to various truck and container heights. Constructed from high-quality steel with a reinforced steel beam frame structure, it ensures exceptional load-bearing capacity and stability, with a rated load capacity ranging from 10 to 20 tons, customizable to meet your specific needs.
Safety is paramount with our Hydraulic Dock Ramp, featuring comprehensive safety devices including sturdy guardrails and safety chains to prevent accidents. Additionally, the dual brake lock system provides reliable wheel braking, ensuring stability during operation. The ramp is finished with a powder-coated surface, offering both aesthetic appeal and excellent rust and corrosion resistance, prolonging the equipment's lifespan.
Widely applicable in warehouses, factories, distribution centers, and logistics hubs, our Hydraulic Dock Ramp is primarily used for efficient loading and unloading of goods from trucks and containers. Its 12-degree ramp angle design ensures smooth and efficient cargo handling. The ramp length can be customized up to 20 meters, and it is available in green or other customizable colors, as well as diamond mesh or other customizable panel options, to suit various operational scenarios.
What are the Benefits of the Hydraulic Dock Ramp?
Precise Height Adjustment
Equipped with an advanced hydraulic system and manual pump, our Hydraulic Dock Ramp offers seamless height adjustment from 1.2 to 1.68 meters, ensuring compatibility with various truck and container heights.
Robust Construction
Constructed from high-quality steel with a reinforced steel beam frame, this ramp provides exceptional durability, stability, and load-bearing capacity, supporting rated loads from 10 to 20 tons.
Enhanced Safety Features
Comprehensive safety measures, including guardrails, safety chains, and a dual brake lock system, ensure secure operation and minimize the risk of accidents.
Durable Finish
The powder-coated surface not only enhances the ramp's appearance but also provides superior resistance to rust and corrosion, extending its service life.
Customizable Options
Tailor the ramp to your specific needs with customizable length (up to 20 meters), color, and panel type (including diamond mesh), ensuring it fits seamlessly into your operational environment.
Versatile Application
Ideal for a wide range of settings, including warehouses, factories, distribution centers, and logistics hubs, facilitating efficient loading and unloading of goods.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

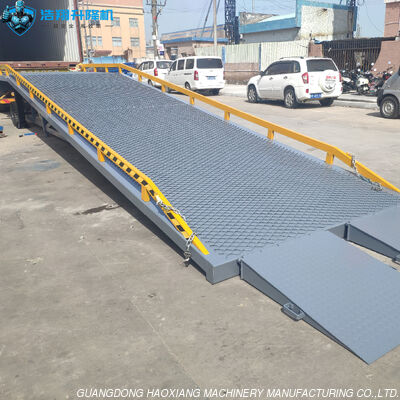

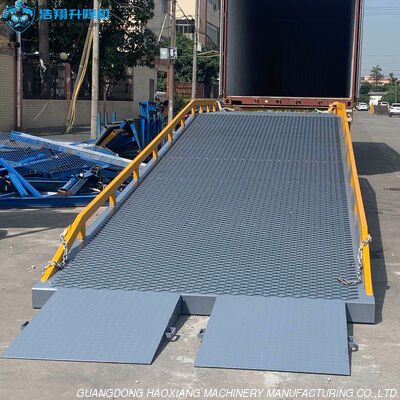

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
