Customized Grey Manual Dock Ramp 10T Load Capacity Length 10M Steel Construction Adjustment Range 1.2-1.68M Height With Safety Guardrails
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Manual dock ramp |
| Country of Origin |
China (Made in China) |
| Color |
Customizable |
| Control Mode |
Manual |
| Stroke Height |
1.2-1.68 Meters |
| Surface Treatment |
Anti-Rust Paint |
What is the Manual Dock Ramp?
Our Manual Dock Ramp is an economical and user-friendly loading and unloading solution, ideally suited for facilities with lower equipment costs and maintenance requirements. Constructed from high-quality steel with a reinforced steel beam frame structure, this ramp ensures outstanding durability and load-bearing capacity, with a rated load capacity ranging from 10 to 20 tons, customizable to meet your needs.
Unlike the hydraulic model, the Manual Dock Ramp achieves lifting functionality through manual operation, eliminating the need for a complex hydraulic system and reducing equipment costs and maintenance efforts. Despite this, it is still equipped with comprehensive safety devices, including guardrails, safety chains, and a dual brake lock system, ensuring operational safety.
The Manual Dock Ramp features a rust-resistant paint finish, effectively protecting the equipment from harsh environments. The ramp length can be customized up to 15 meters, and it offers various color and panel options to cater to different customer preferences. Its 12-degree ramp angle design ensures efficient and smooth cargo handling.
Whether for warehouses, factories, distribution centers, or logistics centers, our Manual Dock Ramp is a reliable loading and unloading assistant. It provides an efficient cargo handling solution with its economical, user-friendly, and safe characteristics.
What are the Benefits of a Manual Dock Ramp?
Cost-Effective Solution
Our Manual Dock Ramp offers a budget-friendly alternative without compromising on quality or performance, making it an excellent choice for cost-conscious operations.
User-Friendly Operation
Despite lacking a hydraulic system, this ramp provides reliable lifting functionality through manual operation, simplifying maintenance and reducing complexity.
Sturdy and Durable
Built with the same high-quality steel and reinforced frame structure as its hydraulic counterpart, the Manual Dock Ramp ensures long-lasting performance and stability.
Comprehensive Safety
Equipped with guardrails, safety chains, and a dual brake lock system, this ramp prioritizes operator safety, mirroring the safety standards of more advanced models.
Resistant Surface Treatment
A rust-resistant paint finish protects the ramp from harsh environmental conditions, ensuring its longevity even in challenging settings.
Flexible Customization
Customize the ramp's length, color, and panel type to align with your specific requirements and preferences, enhancing its suitability for diverse applications.
Products model and parameter series of the Manual Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQY10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQY12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQY15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQY20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQY10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

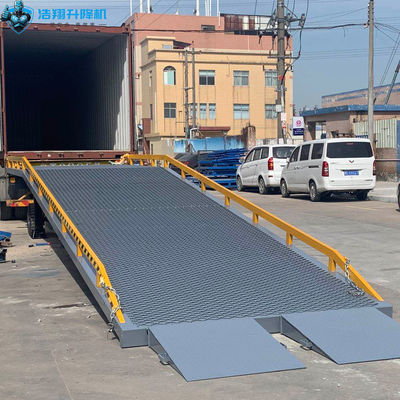

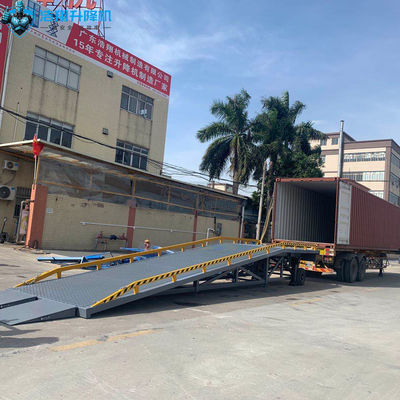

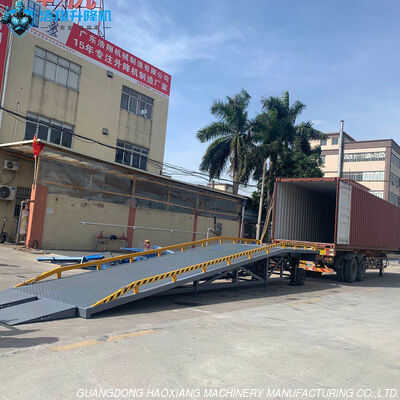

What does the Manual Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
