2.2m Width10ton Hydraulic Mobile Container Truck Loading Unloading Yard Ramp
Product Key Attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Electric hydraulic dock ramp |
| Warranty |
12Months |
| Safety Device |
Guardrail,Safety Chain |
| Type |
Full-length |
| Material |
Steel |
What is the Hydraulic Dock Ramp?
The height-customizable mobile ramp creates a direct interface for vehicle-to-warehouse cargo transfers. Operable by a single worker, it expedites bulk material handling processes. This innovation reduces payroll expenses by eliminating redundant manpower while increasing daily output volume, resulting in substantial ROI through enhanced operational efficiency.
What are the Benefits of the Hydraulic Dock Ramp?
Adjustable Length Hinge Mechanism
Graduated marking system ensures millimeter-perfect alignment. Corrosion-resistant galvanized steel withstands marine environments.
Bridge Body Structure
Dual-beam construction with reinforced gussets. Dynamic load testing confirms 200% safety factor under peak operational conditions.
Anti-skid Steel Netting
Electro-galvanized mesh resists corrosion from salt and chemicals. Certified for use in temperatures ranging from -40°F to 250°F.

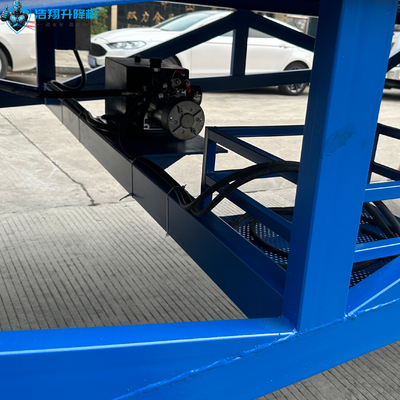

Safety Crack-Proof Valve
Backup valve maintains operational integrity during primary system failure. Visual pressure gauge with color-coded warning zones.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

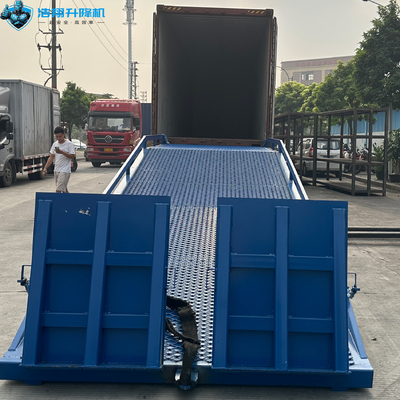

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
