Hydraulic Goods Lift Warehouse 3tons Heavy Lift Construction Cargo Lift Table
Product Key Attributes
| Parameter/Feature |
Specification Details |
| Installation Place |
Indoor/Outdoor |
| Materials |
Heavy Duty Frame Anti Rust Steel |
| Power |
3kw-5.5kw |
| Origin |
China |
| Working Speed |
6m/Min |
What is the Hydraulic Guide Rail Lift?
Frequently deployed in retail, hospitality, and industrial facilities, commercial freight lifts excel at inter-floor goods movement. The primary advantage is their undemanding installation process requiring minimal environmental adjustments. Clients can specify technical parameters such as power supply, deck size, elevation range, weight capacity, and entry/exit alignment, complemented by protective barriers if required.
What are the Benefits of a Hydraulic Guide Rail Lift?
Quiet and Smooth Operation
Powered by a hydraulic drive system, our elevator operates quietly and smoothly, minimizing disturbances to the surrounding environment.
User-Friendly Controls
Intuitive control panels and user-friendly interfaces make operating the cargo lift elevator straightforward, reducing training time and enhancing overall efficiency.
Customizable Sizes
Available in various sizes to fit your specific requirements, our hydraulic cargo lift can be tailored to suit the dimensions of your space and the nature of your cargo.
Durable Construction
Crafted from high-quality materials and built to withstand heavy usage, our cargo elevator is designed for long-lasting durability, minimizing maintenance needs and costs.
Energy-Efficient
The hydraulic system optimizes energy consumption, contributing to cost savings and environmental sustainability while maintaining superior performance.
Products model and parameter series of the Hydraulic Guide Rail lift.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Lowering height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| DSL1-3 |
1000 |
3000 |
100 |
2000×1800 |
6m/min |
3 |
| DSL1-12 |
1000 |
12000 |
100 |
2500×2000 |
6m/min |
3 |
| DSL2-4 |
2000 |
4000 |
150 |
2000×1800 |
6m/min |
4 |
| DSL2-10 |
2000 |
10000 |
200 |
3000×3500 |
6m/min |
4 |
| DSL3-5 |
3000 |
5000 |
150 |
3000×1800 |
6m/min |
5.5 |
| DSL3-8 |
3000 |
8000 |
150 |
2000×1700 |
6m/min |
5.5 |
| DSL4-5 |
4000 |
5000 |
250 |
3000×4000 |
6m/min |
7.5 |
| DSL4-10 |
4000 |
10000 |
150 |
5000×3000 |
6m/min |
7.5 |
| DSL5-6 |
5000 |
6000 |
400 |
5800×3000 |
6m/min |
11 |
| DSL10-15 |
10000 |
15000 |
400 |
7000×5000 |
6m/min |
18.5 |
| DSL15-9 |
15000 |
9000 |
800 |
8000×4000 |
6m/min |
30 |
| DSL15-10 |
15000 |
10000 |
800 |
9000×4500 |
6m/min |
30 |

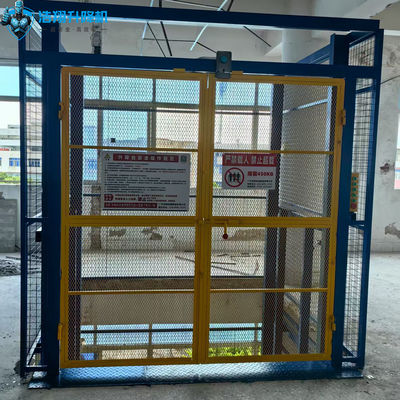

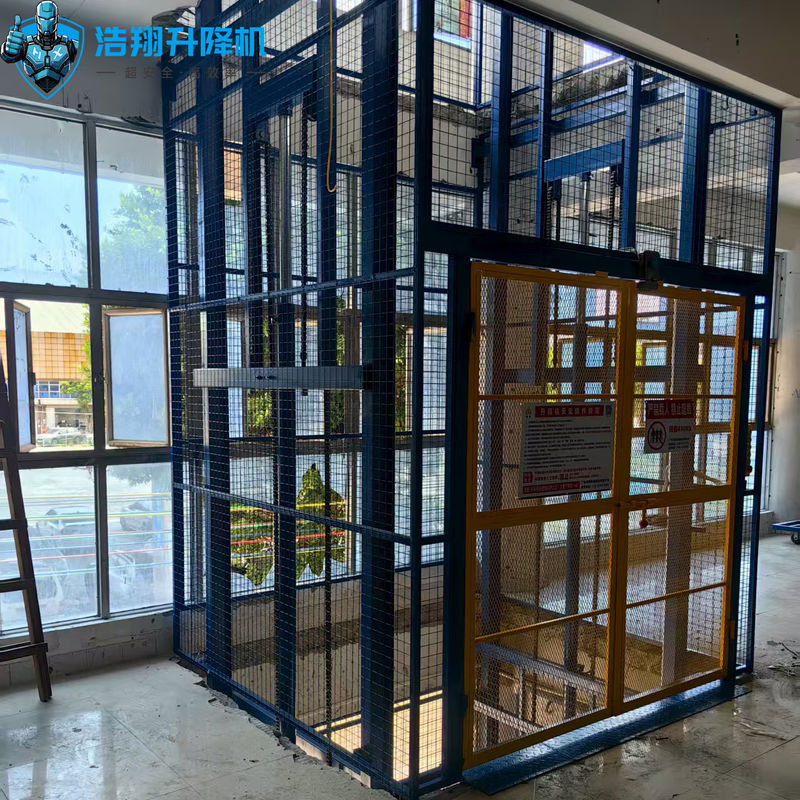

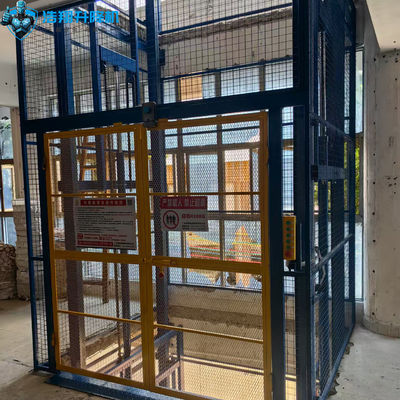

What does the Hydraulic Guide Rail lift look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co.,Ltd. has been a pioneer in the hydraulic machinery industry for over 20 years, earning its reputation as one of China’s Top 10 Hydraulic Equipment Brands. With a focus on innovation and quality, we hold ISO 12100, CE, Guangdong Pollutant Discharge Permit and National High-Tech Enterprise Certification, ensuring our products meet the highest global standards. Our hydraulic lifts are widely used in logistics, construction, and industrial sectors across Southeast Asia, the Middle East, and Africa.
Certification Advantages:
1.National High-Tech Enterprise Certification (GR202344017911)
2.38 Utility Patents (Including hydraulic dampening system ZL2016 2 0893994.9)
3.Guangdong Pollutant Discharge Permit
4.Special Equipment Manufacturing License (TS Certification TS2444360-2027)
Global Impact: 12,000+ units shipped to 50 countries, 35% ASEAN market share
Domestic Impact: Served 40,000+ corporate customers and gained trust with quality, such as JD.com and other large companies
