5m Hydraulic Goods Lift Platform Vertical Platform Lift Warehouse Cargo Lift
Product Key Attributes
| Parameter/Feature |
Specification Details |
| Carrying Capacity |
Weight Level |
| Safety Measurement |
Anti-Fall Device |
| Carriage Wall |
Steel |
| Origin |
China |
| Working Speed |
6m/Min |
What is the Hydraulic Guide Rail Lift?
Designed for commercial settings like hotels, logistics hubs, auto dealerships, and hypermarkets, our cargo elevators facilitate seamless vertical transportation. Their standout benefit lies in minimal installation prerequisites and straightforward setup. Customization options include voltage adaptation, platform dimensions, lift height, payload capacity, and access orientation, with optional safety railings.
What are the Benefits of a Hydraulic Guide Rail Lift?
High Load Capacity
Designed to accommodate substantial weight capacities, our hydraulic cargo elevator is capable of effortlessly moving large and bulky items, optimizing your logistics and material handling operations.
Versatile Indoor and Outdoor Use
With weather-resistant components and a sturdy build, our elevator is suitable for both indoor and outdoor applications, offering flexibility and convenience in various environments.
Safety Features
Equipped with advanced safety features, including emergency stop buttons, safety gates, and overload protection, our hydraulic cargo lift ensures the utmost safety for both operators and goods.
Space Optimization
The efficient design of our cargo elevator maximizes vertical space utilization, allowing you to make the most of available storage and workspace while maintaining a compact footprint.
Products model and parameter series of the Hydraulic Guide Rail lift.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Lowering height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| DSL1-3 |
1000 |
3000 |
100 |
2000×1800 |
6m/min |
3 |
| DSL1-12 |
1000 |
12000 |
100 |
2500×2000 |
6m/min |
3 |
| DSL2-4 |
2000 |
4000 |
150 |
2000×1800 |
6m/min |
4 |
| DSL2-10 |
2000 |
10000 |
200 |
3000×3500 |
6m/min |
4 |
| DSL3-5 |
3000 |
5000 |
150 |
3000×1800 |
6m/min |
5.5 |
| DSL3-8 |
3000 |
8000 |
150 |
2000×1700 |
6m/min |
5.5 |
| DSL4-5 |
4000 |
5000 |
250 |
3000×4000 |
6m/min |
7.5 |
| DSL4-10 |
4000 |
10000 |
150 |
5000×3000 |
6m/min |
7.5 |
| DSL5-6 |
5000 |
6000 |
400 |
5800×3000 |
6m/min |
11 |
| DSL10-15 |
10000 |
15000 |
400 |
7000×5000 |
6m/min |
18.5 |
| DSL15-9 |
15000 |
9000 |
800 |
8000×4000 |
6m/min |
30 |
| DSL15-10 |
15000 |
10000 |
800 |
9000×4500 |
6m/min |
30 |

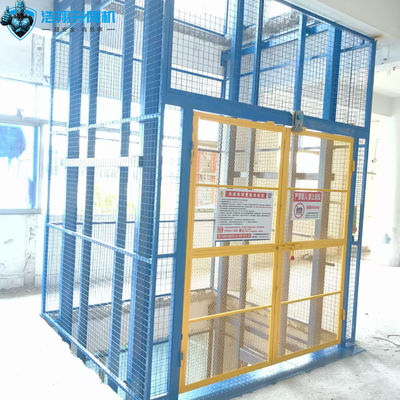

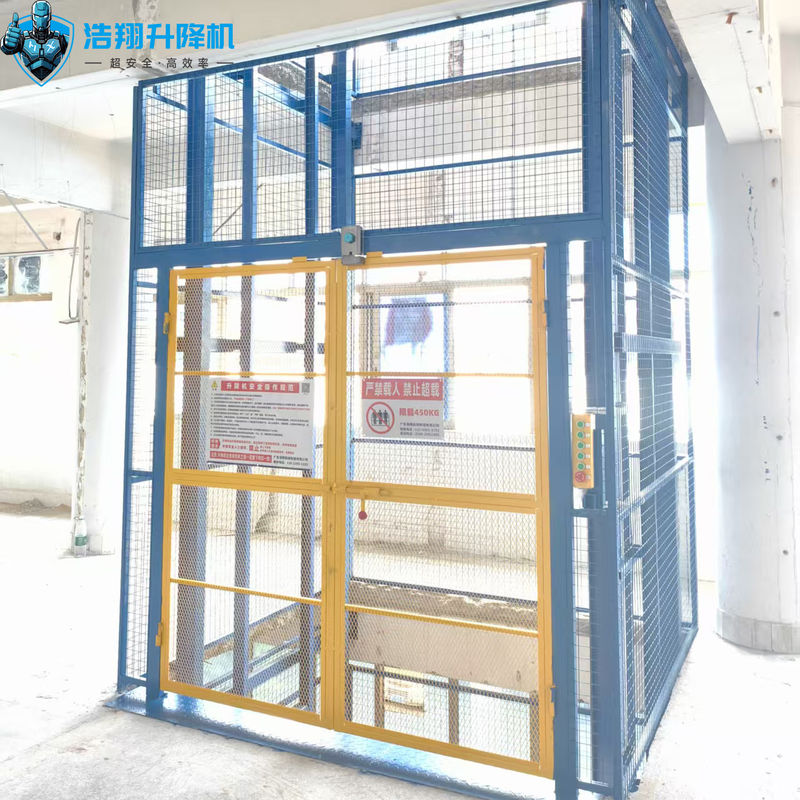

What does the Hydraulic Guide Rail lift look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co.,Ltd. has been a pioneer in the hydraulic machinery industry for over 20 years, earning its reputation as one of China’s Top 10 Hydraulic Equipment Brands. With a focus on innovation and quality, we hold ISO 12100, CE, Guangdong Pollutant Discharge Permit and National High-Tech Enterprise Certification, ensuring our products meet the highest global standards. Our hydraulic lifts are widely used in logistics, construction, and industrial sectors across Southeast Asia, the Middle East, and Africa.
Certification Advantages:
1.National High-Tech Enterprise Certification (GR202344017911)
2.38 Utility Patents (Including hydraulic dampening system ZL2016 2 0893994.9)
3.Guangdong Pollutant Discharge Permit
4.Special Equipment Manufacturing License (TS Certification TS2444360-2027)
Global Impact: 12,000+ units shipped to 50 countries, 35% ASEAN market share
Domestic Impact: Served 40,000+ corporate customers and gained trust with quality, such as JD.com and other large companies
