Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size

Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size
Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size

Imagem Grande :  Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size

Detalhes do produto:
Lugar de origem: Guangdong, China
Marca: HAOXIANG BRAND
Certificação: CE/ISO
Número do modelo: DSL 2-5
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 unidade
Preço: USD2300- USD5000 / UNIT
Detalhes da embalagem: Embalagem nua
Tempo de entrega: 7-15 dias úteis
Termos de pagamento: T/T.
Habilidade da fonte: 1500 unidades por ano
Contato

Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size

descrição
Nome do produto: Elevador de trilho de guia hidráulico País de origem: FEITO NA CHINA
Instalação: Plataforma no poço ou no solo Cor: Requisitos de azul/clientes
Aplicativo: Armazém, fábrica, centro de distribuição Certificação: CE/ISO
Fonte de energia: AC 380V/50Hz Velocidade de elevação: 6m/min
Carga nominal: Até 30 toneladas, personalizáveis Modo de controle: Hidráulico
Entrada: Frente/a/a 90 graus Tamanho da plataforma: 1.5m x 1,5m
Altura do piso: 1-7º andar/personalizável
Destacar:

heavy duty hydraulic cargo lift

,

customizable warehouse lift platform

,

hydraulic lift platform with warranty

Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size
Warehouse Cargo Lift provides fast, efficient, convenient and safe access to mezzanines, balconies, basements, and any levels in multistoried building. It is driven by the electric and hydraulic system, lifting up and down along the guide rail. Equipped with single side or double sides hydraulic cylinder to keep the machinery works smooth and steady.
Product Specifications
Product Name:
Hydraulic Guide Rail Lift
Color:
Blue/Customers' Requirements
Application:
Warehouse, Factory, Distribution Center
Door:
Manual/Sliding/Swing
Certification:
CE/ISO
Power Supply:
AC 380V/50Hz
Lifting Speed:
6m/min
Rated Load:
Up to 30 tons, Customizable
Safety Features
  • Reliable Hydraulic System: Provides consistent power and accurate movement for heavy cargo.
  • Extra Weight Capacity: Handles the heaviest goods with ease, improving workflow speed.
  • All-Condition Durability: Designed with weatherproof and rugged features for any setting.
  • Multi-Layered Safety: Preventive measures like overload stops and secure gates keep operations safe.
  • Space-Efficient Design: Tall lift with small footprint maximizes warehouse efficiency.
  • Noise-Free Lifting: Nearly silent operation reduces workplace interruptions.
  • Operator-Friendly Controls: Easy navigation for smooth training and usage.
  • Adjustable Dimensions: Customizable to specific cargo and site needs.
  • Heavy-Duty Materials: Solid build reduces maintenance and prolongs service.
  • Cost-Saving Green Tech: Energy-smart hydraulics reduce expenses and carbon footprint.
Technical Specifications
Model Rated Load (kg) Lifting Stroke (mm) Lowering Height (mm) Table Size (mm) Lifting Time Motor Power (kw)
DSL1-12 1000 12000 100 2500×2000 6m/min 3
DSL2-4 2000 4000 150 2000×1800 6m/min 4
DSL2-10 2000 10000 200 3000×3500 6m/min 4
DSL3-5 3000 5000 150 3000×1800 6m/min 5.5
DSL3-8 3000 8000 150 2000×1700 6m/min 5.5
DSL4-5 4000 5000 250 3000×4000 6m/min 7.5
DSL4-10 4000 10000 150 5000×3000 6m/min 7.5
DSL5-6 5000 6000 400 5800×3000 6m/min 11

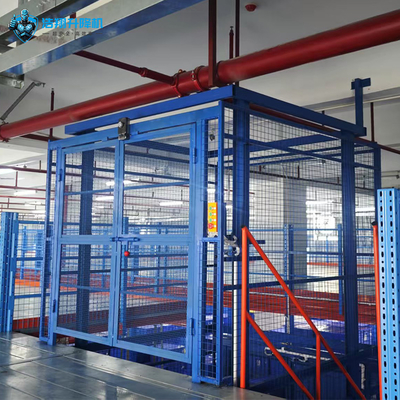

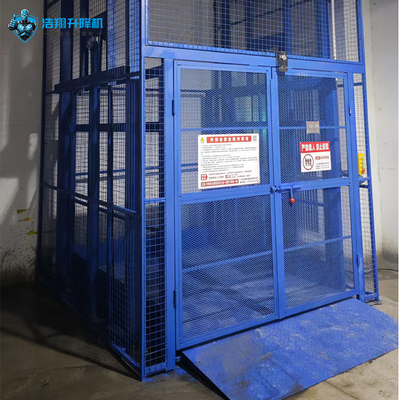

Product Images
Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size 0 Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size 1 Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size 2
About Our Company

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.

We are committed to developing ultra-safe, high-efficiency lifting systems that deliver reliable performance across logistics, warehousing, and industrial applications. Our advanced manufacturing technologies and rigorous quality control systems have established us as an industry benchmark for precision engineering and operational excellence.

Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide. We guarantee rapid-response services with 2-hour on-site support in the Pearl River Delta region and 24-hour emergency response coverage across China.

Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size 3 Hydraulic Cargo Lift Heavy Duty Warehouse Lift Platform Customizable Size 4
