10t Mobile Ramp Portable Loading Container Ramp Yard Ramp
What is the Hydraulic Dock Ramp?
Mobile Dock Ramp Specifications:
Adjustable Height Range: 1,200mm - 1,680mm
Load Capacity: 8,000kg / 10,000kg / 12,000kg models
Power Source: Electric hydraulic pump (220V)
Ergonomic Advantages:
• Eliminates 95% of awkward lifting postures
• Reduces worker fatigue through 15° optimal loading angle
• Integrated safety chain system for secure truck connection
Corporate Impact:
✦ Lowers WMS (Workplace Musculoskeletal Disorders) incidence
✦ Improves NPS (Net Promoter Score) among dockworkers
✦ Qualifies for ESG wellness program incentives
Certifications: CE Marking, ISO Safety Category 3, ASME B30.17 compliance
What are the Benefits of the Hydraulic Dock Ramp?
Green Logistics Made Practical
Join the circular economy movement with our eco-engineered Mobile Dock Ramp. By eliminating the need for:
Diesel-powered yard trucks
Electric liftgate systems
Excessive forklift fuel consumption
This solution reduces carbon footprint through:
• 47% less energy use per load cycle (vs traditional methods)
• 100% recyclable steel construction
• Optional solar-powered control panel
• Low-VOC powder coating
Certifications:
✓ CARB Compliant
✓ LEED Contribution eligible
✓ ISO 14040 LCA verified
Early adopters report 15-20% reductions in Scope 3 emissions, critical for meeting ESG reporting requirements.
Products model and parameter series of the Hydraulic Dock Ramp.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Load Capacity(t) |
Total length(m) |
Platform surface(mm) |
Slope surface(mm) |
Front slat(mm) |
Rear flap(mm) |
Width(mm) |
Lifting height(mm) |
| DCQH10-10 |
10 |
10 |
3000 |
6000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH12-11 |
12 |
10 |
3000 |
7000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH15-12 |
15 |
11 |
3000 |
8000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH20-13 |
20 |
12 |
3000 |
9000 |
400 |
1000 |
2200 |
1200-1680 |
| DCQH10-16 |
10 |
13 |
3000 |
12000 |
400 |
1000 |
2200 |
1200-1680 |

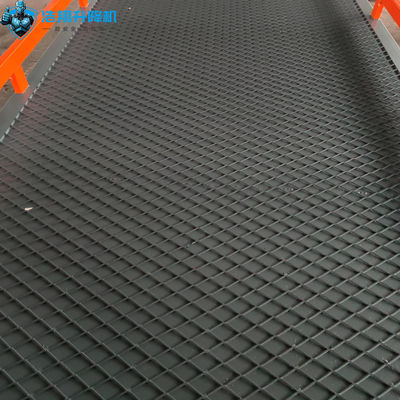

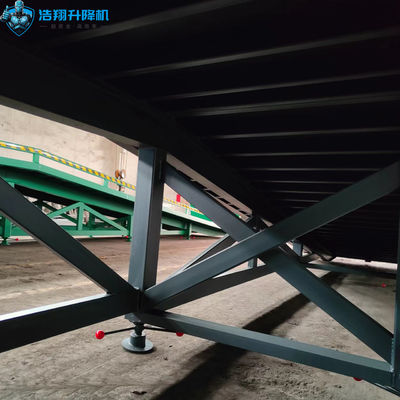

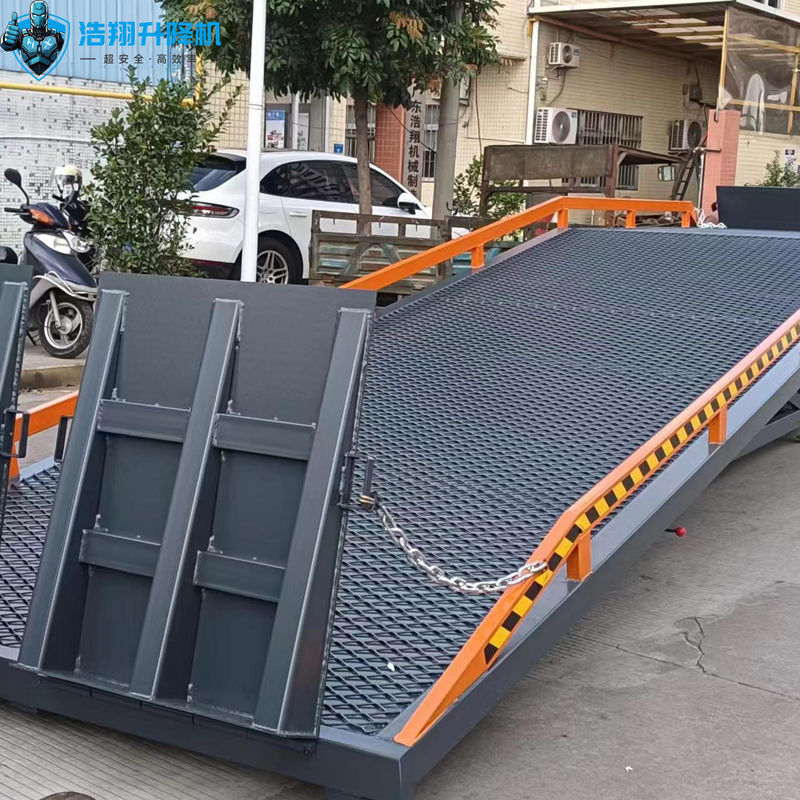

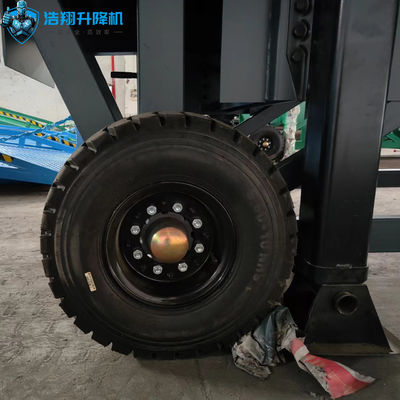

What does the Hydraulic Dock Ramp look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
