Wholesale Work Platform Lifts Single Guide Rails Cargo Lift Hydraulic Cargo

Large Image : Wholesale Work Platform Lifts Single Guide Rails Cargo Lift Hydraulic Cargo

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	DSL 3-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD2300- USD5000 / UNIT
Packaging Details:	Naked packaging
Delivery Time:	7-15 working days
Payment Terms:	T/T
Supply Ability:	1500 UNITS PER YEAR

Contact Now

Wholesale Work Platform Lifts Single Guide Rails Cargo Lift Hydraulic Cargo

Description

Product Name:	Hydraulic Guide Rail Lift	Control Mode:	Hydraulic
Rated Load:	Up To 30 Tons,Customizable	Stroke Height:	4m
Entrance:	Front/Through/90 Degree	Main Function:	Lifting Cargos
Lead Time (days):	15-20 Working Days	Certification:	CE/ISO
Power Supply:	AC 380V/50Hz	Lifting Speed:	6m/min
Highlight:	hydraulic cargo lift single guide rail , freight platform lift with warranty , wholesale work platform cargo lift

Wholesale Work Platform Lifts Single Guide Rails Cargo Lift Hydraulic Cargo

Product Specifications

Attribute	Value
Product Name	Hydraulic Guide Rail Lift
Control Mode	Hydraulic
Rated Load	Up to 30 tons, Customizable
Stroke Height	4m
Entrance	Front/Through/90 Degree
Main Function	Lifting Cargos
Lead time (days)	15-20 Working days
Certification	CE/ISO
Power Supply	AC 380V/50Hz
Lifting Speed	6m/min

Product Overview

Commercial cargo lifts are freight elevators built to move goods. Ours serve a broad range of commercial settings—hotels, logistics warehouses, car dealerships, and big-box supermarkets—shuttling cargo between floors. Their standout trait is full customization: voltage, platform dimensions, lifting height, capacity, and loading direction can all be tailored, and optional guardrail gates are available. Best of all, the lift demands minimal site preparation and installs with ease.

Key Benefits

Whisper-Quiet Motion: The hydraulic drive glides almost silently, keeping ambient disruption to a minimum.
Simplified Operation: Clear touch panels and ergonomic interfaces cut training time and raise throughput.
Tailorable Dimensions: Multiple platform sizes and heights can be specified, matching unique spatial constraints and cargo profiles.
Industrial-Grade Build: Premium metals and finishes endure relentless cycles, curbing downtime and upkeep expenses.
Eco-Smart Efficiency: The powertrain sips energy, trimming utility bills and shrinking environmental impact without sacrificing power.

Technical Specifications

Model	Rated load (kg)	Lifting stroke (mm)	Lowering height (mm)	Table size (mm)	Lifting time	Motor power (kw)
DSL1-3	1000	3000	100	2000×1800	6m/min	3
DSL1-12	1000	12000	100	2500×2000	6m/min	3
DSL2-4	2000	4000	150	2000×1800	6m/min	4
DSL2-10	2000	10000	200	3000×3500	6m/min	4
DSL3-5	3000	5000	150	3000×1800	6m/min	5.5
DSL3-8	3000	8000	150	2000×1700	6m/min	5.5
DSL4-5	4000	5000	250	3000×4000	6m/min	7.5
DSL4-10	4000	10000	150	5000×3000	6m/min	7.5
DSL5-6	5000	6000	400	5800×3000	6m/min	11
DSL10-15	10000	15000	400	7000×5000	6m/min	18.5
DSL15-9	15000	9000	800	8000×4000	6m/min	30
DSL15-10	15000	10000	800	9000×4500	6m/min	30

Specifications, sizes and colors can be customized according to customer requirements.

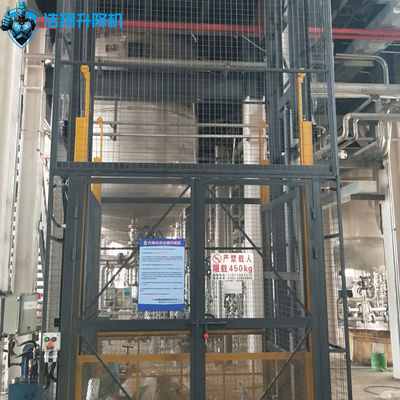

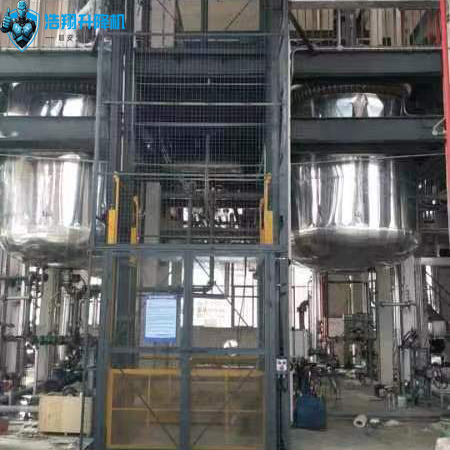

Product Images

About Our Company

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.

Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.

Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide. We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
