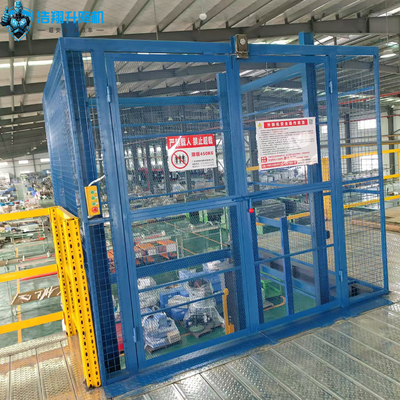

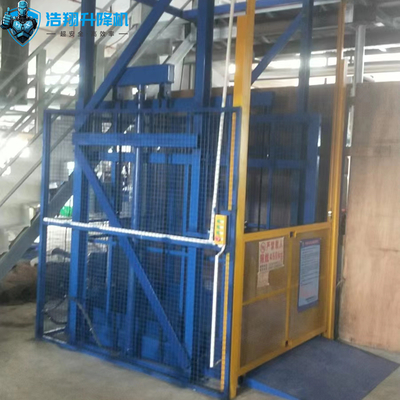

Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator

Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator
Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator

Large Image :  Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: HAOXIANG BRAND
Certification: CE/ISO
Model Number: DSL 3-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD2300- USD5000 / UNIT
Packaging Details: Naked packaging
Delivery Time: 7-15 WORKING DAYS
Payment Terms: T/T
Supply Ability: 1500 UNITS PER YEAR

Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator

Description
Product Name: Hydraulic Guide Rail Lift Country Of Origin: Made In China
Installation: Platform In Pit Or On Ground Lifting Height: Up To 50 Meters,Customizable
Rated Load: Up To 30 Tons,Customizable Power Supply: AC 380V/50Hz
Certification: CE/ISO Lead Time (days): 15-20 Working Days
Main Function: Lifting Cargos HS Code: 842890
Highlight:

wall mounted cargo lift

,

industrial freight elevator

,

warehouse vertical goods lift

Hydraulic Guide Rail Lift
Product Specifications
Attribute Value
Product Name Hydraulic Guide Rail Lift
Country of Origin Made in China
Installation Platform in pit or on ground
Lifting Height Up to 50 meters, Customizable
Rated Load Up to 30 tons, Customizable
Power Supply AC 380V/50Hz
Certification CE/ISO
Lead time (days) 15-20 Working days
Main Function Lifting Cargos
HS Code 842890
Product Overview

Commercial goods lifts are designed to haul freight. Our units work in hotels, logistics hubs, vehicle service centers, and big supermarkets, transferring cargo across floors. The prime advantage is customization: every parameter--voltage, deck size, rise, weight rating, and doorway direction--can be specified, and safety-bar doors can be added. Site requirements remain low, and setup is simple.

Key Benefits
  • High-Thrust Hydraulics: A muscular hydraulic circuit powers the lift, ensuring silky, dependable elevation of heavy freight with meticulous regulation.
  • Substantial Load Rating: Designed for high tonnage, the elevator moves hefty or outsized pieces without strain, optimizing material flow.
  • Dual-Environment Suitability: Weather-sealed parts and a robust shell thrive indoors as well as in the elements.
  • Multi-Layer Safety Array: Emergency stops, safety doors, and overload lockouts provide total protection for personnel and goods.
  • Vertical Space Maximizer: A sleek footprint capitalizes on height rather than floor area, expanding storage capacity.
Technical Specifications
Model Rated load (kg) Lifting stroke (mm) Lowering height (mm) Table size (mm) Lifting time Motor power (kw)
DSL1-3 1000 3000 100 2000×1800 6m/min 3
DSL1-12 1000 12000 100 2500×2000 6m/min 3
DSL2-4 2000 4000 150 2000×1800 6m/min 4
DSL2-10 2000 10000 200 3000×3500 6m/min 4
DSL3-5 3000 5000 150 3000×1800 6m/min 5.5
DSL3-8 3000 8000 150 2000×1700 6m/min 5.5
DSL4-5 4000 5000 250 3000×4000 6m/min 7.5
DSL4-10 4000 10000 150 5000×3000 6m/min 7.5
DSL5-6 5000 6000 400 5800×3000 6m/min 11
DSL10-15 10000 15000 400 7000×5000 6m/min 18.5
DSL15-9 15000 9000 800 8000×4000 6m/min 30
DSL15-10 15000 10000 800 9000×4500 6m/min 30

Specifications, sizes and colors can be customized according to customer requirements.

Product Images
Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator 0 Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator 1 Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator 2
About Our Company

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.

Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.

Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide.

Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator 3 Construction Workshop Warehouse Vertical Wall Mounted Cargo Lift Freight Elevator 4
